Sliding bearing and method for manufacturing sliding bearing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
May 24, 2016
filing date -
Jun 19, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

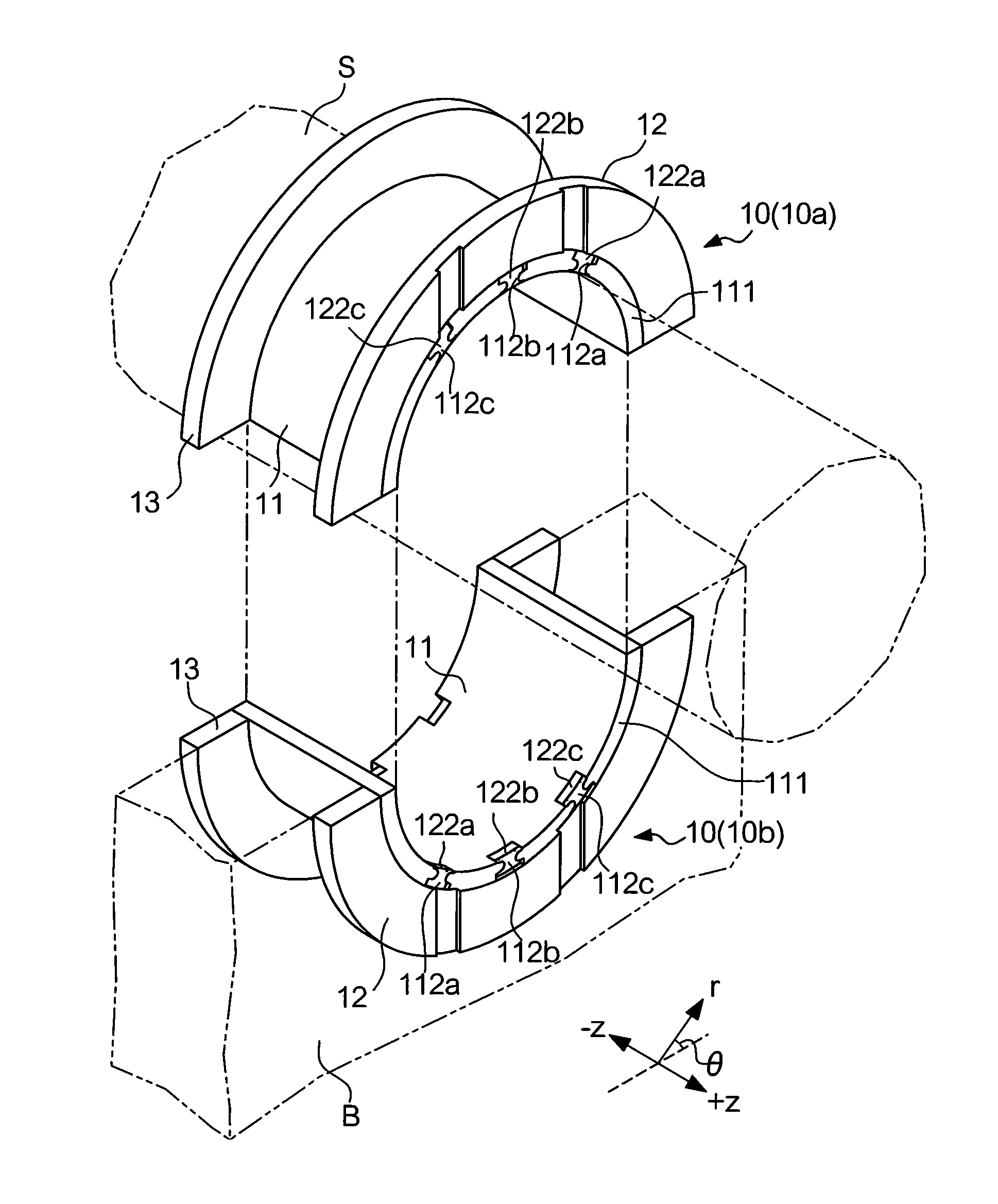

Bearing 10 includes: a half bearing member having an inner circumferential face that slides against an associated shaft, and a plurality of recesses provided in a first end face in an axial direction of the associated shaft; a first flange member having a plurality of projections provided at positions corresponding to the plurality of recesses provided in the first end face; and a plurality of staking marks formed in a periphery of each recess when each recess is staked in a state where each of the plurality of projections is fitted to a corresponding one of the plurality of recesses in the first end face to fix the first flange member to the half bearing member. When staking marks formed on both sides of at least one of the plurality of recesses are viewed in a radial direction of the associated shaft, a volume of a deformed portion near a staking mark located outside in a circumferential direction is smaller than a volume of a deformed portion close to a staking mark located inside.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F16C Class
- 1479 Applications Filed
- 1109 Patents Issued To-Date
- 74.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
