Vibrational fluid mover jet with active damping mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Aug 29, 2014
filing date -
Aug 29, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

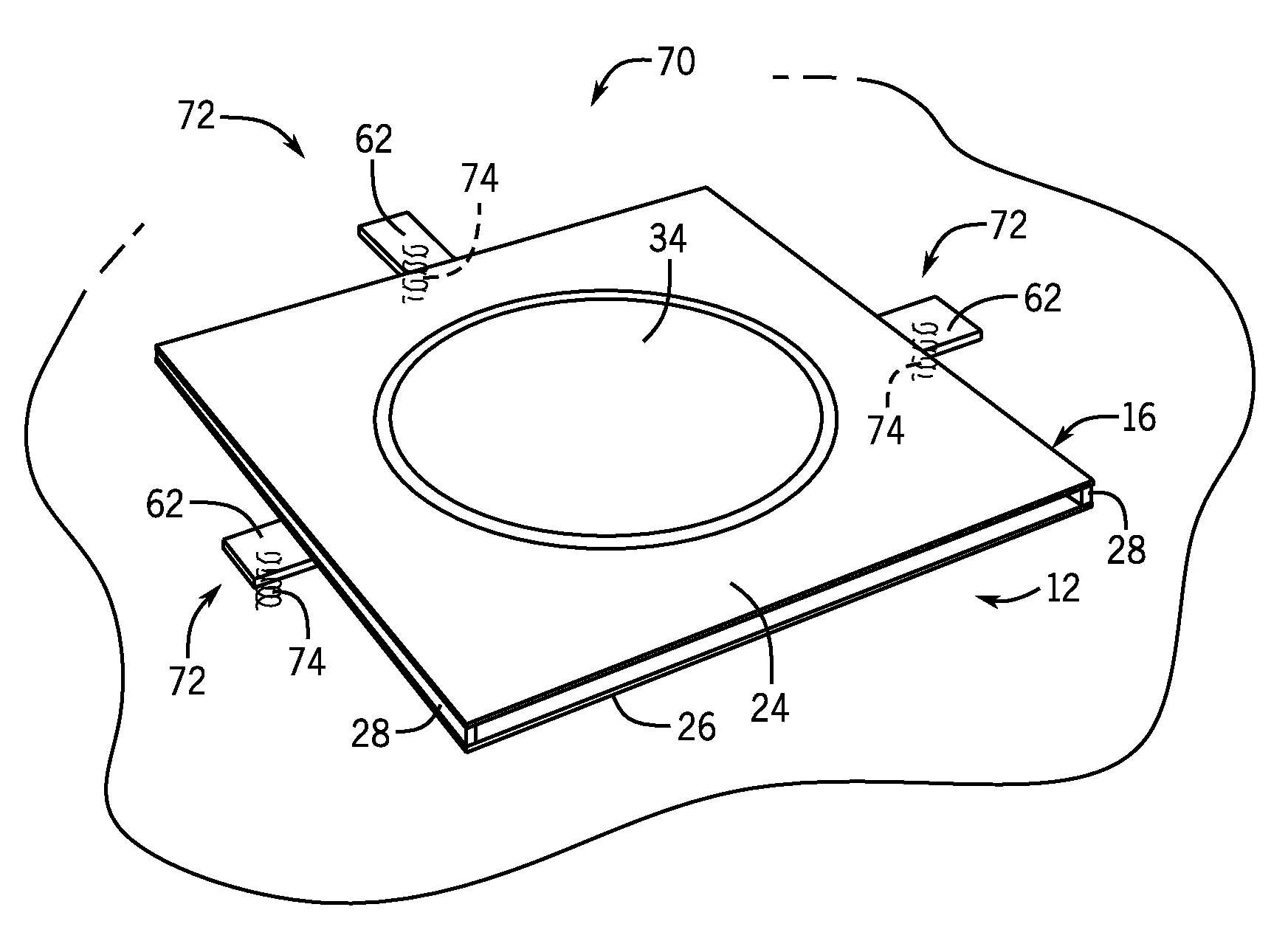

A vibrational fluid mover assembly having an active damping mechanism is disclosed. The vibrational fluid mover assembly includes a vibrational fluid mover having a first plate, a second plate spaced apart from the first plate, a spacer element having an orifice formed therein and being positioned between the first and second plates to maintain the first and second plates in a spaced apart relationship, and an actuator element coupled to at least one of the first and second plates to selectively cause deflection thereof such that a fluid flow is generated and projected out from the orifice. The vibrational fluid mover assembly also includes an absorber system connected to the vibrational fluid mover and providing active damping to the vibrational fluid mover, with the absorber system having suspension tabs coupled to the vibrational fluid mover and spring components configured to mount the vibrational fluid mover in a suspended arrangement.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2014 Application Filing Year
- H01L Class
- 23828 Applications Filed
- 21803 Patents Issued To-Date
- 91.51 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H01L Class
- 23.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
