Cooling passages for a mid-turbine frame

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9879604
SERIAL NO

14644541

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

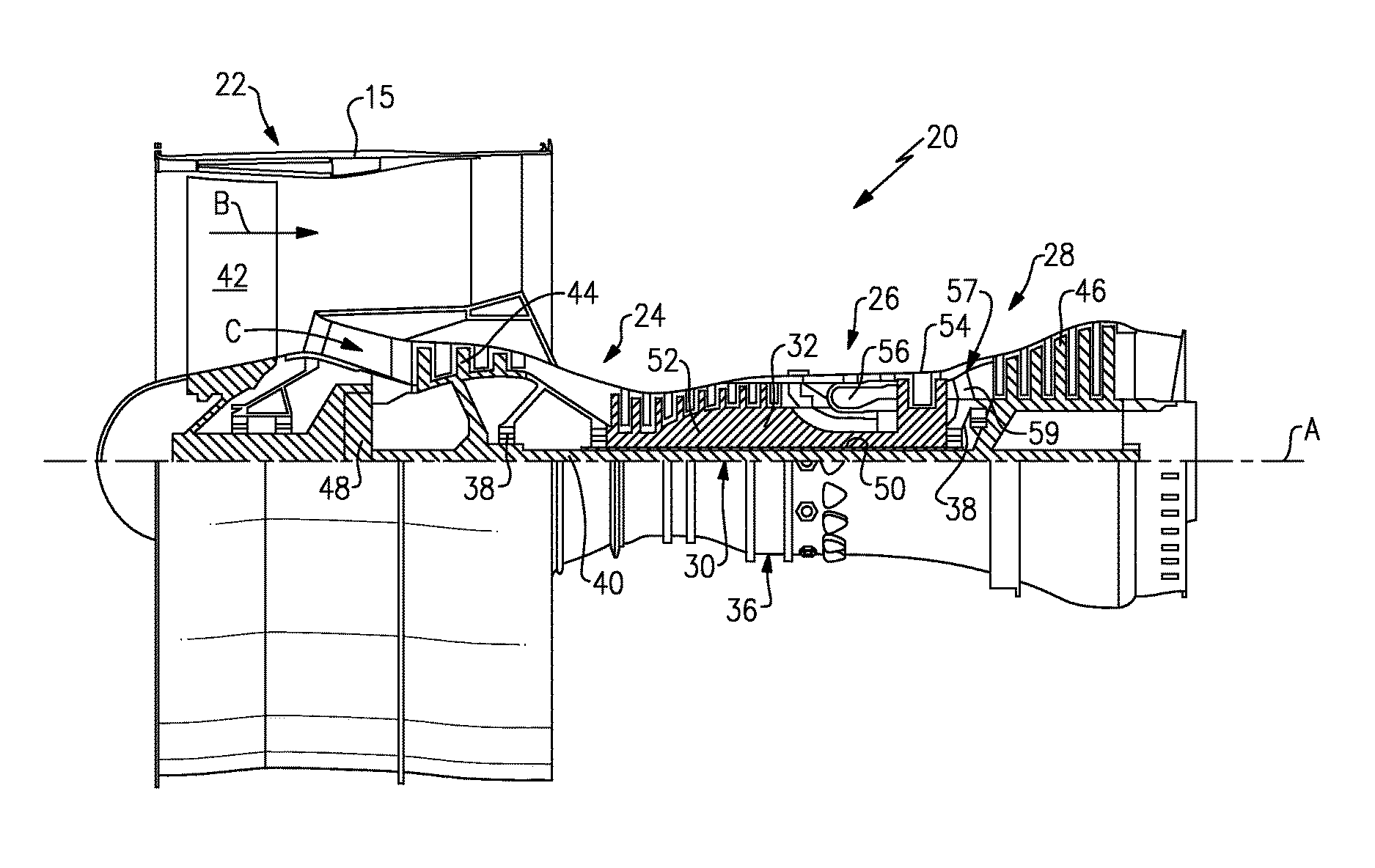

A mid-turbine frame for a gas turbine engine includes an inner frame case. A bearing support member is located adjacent the inner frame case. At least one spoke is attached to the inner frame case. At least one spoke includes a cooling airflow passage that extends through the inner frame case and the bearing support member.
