Diagnosis device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Jul 31, 2014
filing date -
Jul 31, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

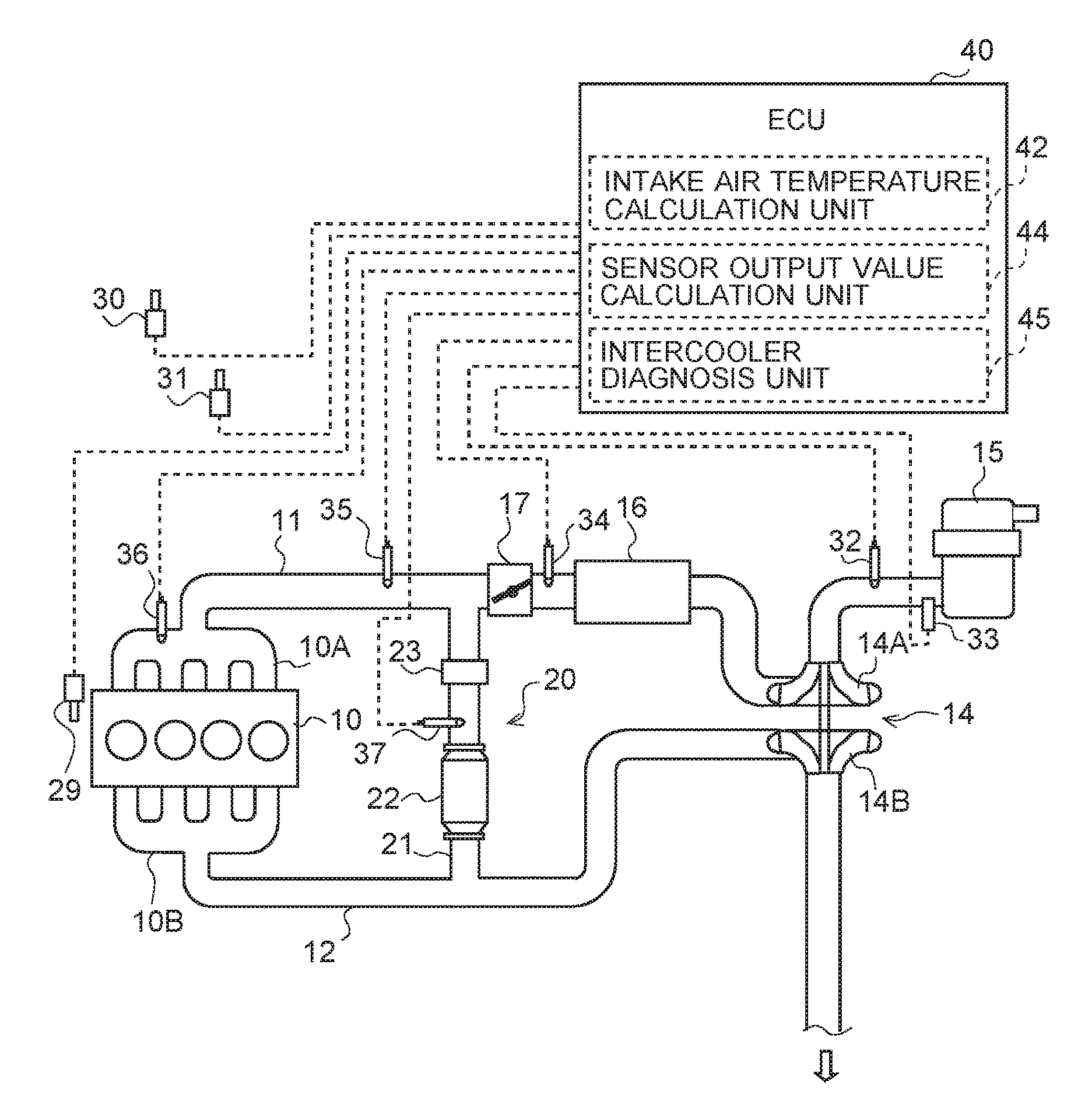

A diagnosis device diagnoses a cooler adapted to cool a fluid flowing through intake and exhaust systems of an engine, and includes: a downstream temperature sensor for detecting a fluid temperature downstream of the cooler; a fluid temperature calculation unit for calculating a fluid temperature upstream of the cooler based on a fluid state quantity; a sensor output value calculation unit for assuming an upstream temperature sensor configured to detect a fluid temperature upstream of the cooler, reflecting a sensor response delay in the calculated fluid temperature, and calculating an estimated sensor output value of the upstream temperature sensor; and a cooler diagnosis unit for diagnosing the cooling efficiency of the cooler based on an actual sensor input value entered from the downstream temperature sensor and the calculated estimated sensor output value.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F02M Class
- 1366 Applications Filed
- 1150 Patents Issued To-Date
- 84.19 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F02M Class
- 21.60 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
