Cooled finger seal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Apr 6, 2015
filing date -
Apr 11, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

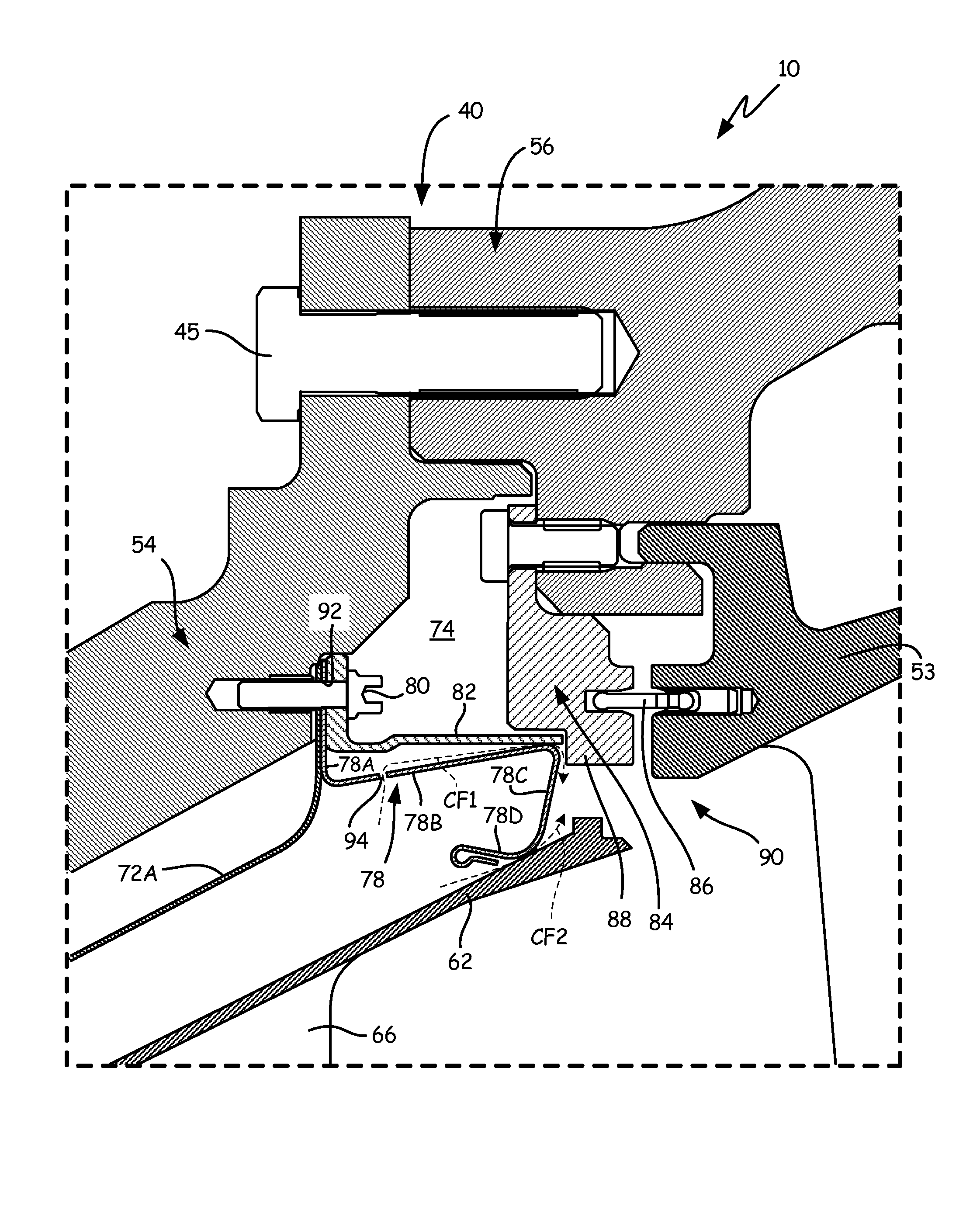

An air seal for a gas turbine engine platform comprises a flow path platform, a seal retention ring, a finger seal. The seal retention ring is situated radially adjacent the flow path platform. The finger seal is retained by the seal retention ring between the flow path platform and the seal retention ring. The finger seal comprises a first ply with first keyhole slots, a second ply with second keyhole slots circumferentially offset relative to the first keyhole slots, and a foil layer. The foil layer is disposed between the first and second plies. The finger seal has a series of cooling holes in the outer circumferential segment to cool the outer diameter of the seal. In addition, leakage between the finger seal and the flow path platform cools the inner diameter of the seal.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F02C Class
- 1751 Applications Filed
- 1341 Patents Issued To-Date
- 76.59 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- F02C Class
- 22.35 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
