Lock for a motor vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Feb 14, 2014
filing date -
Mar 6, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance

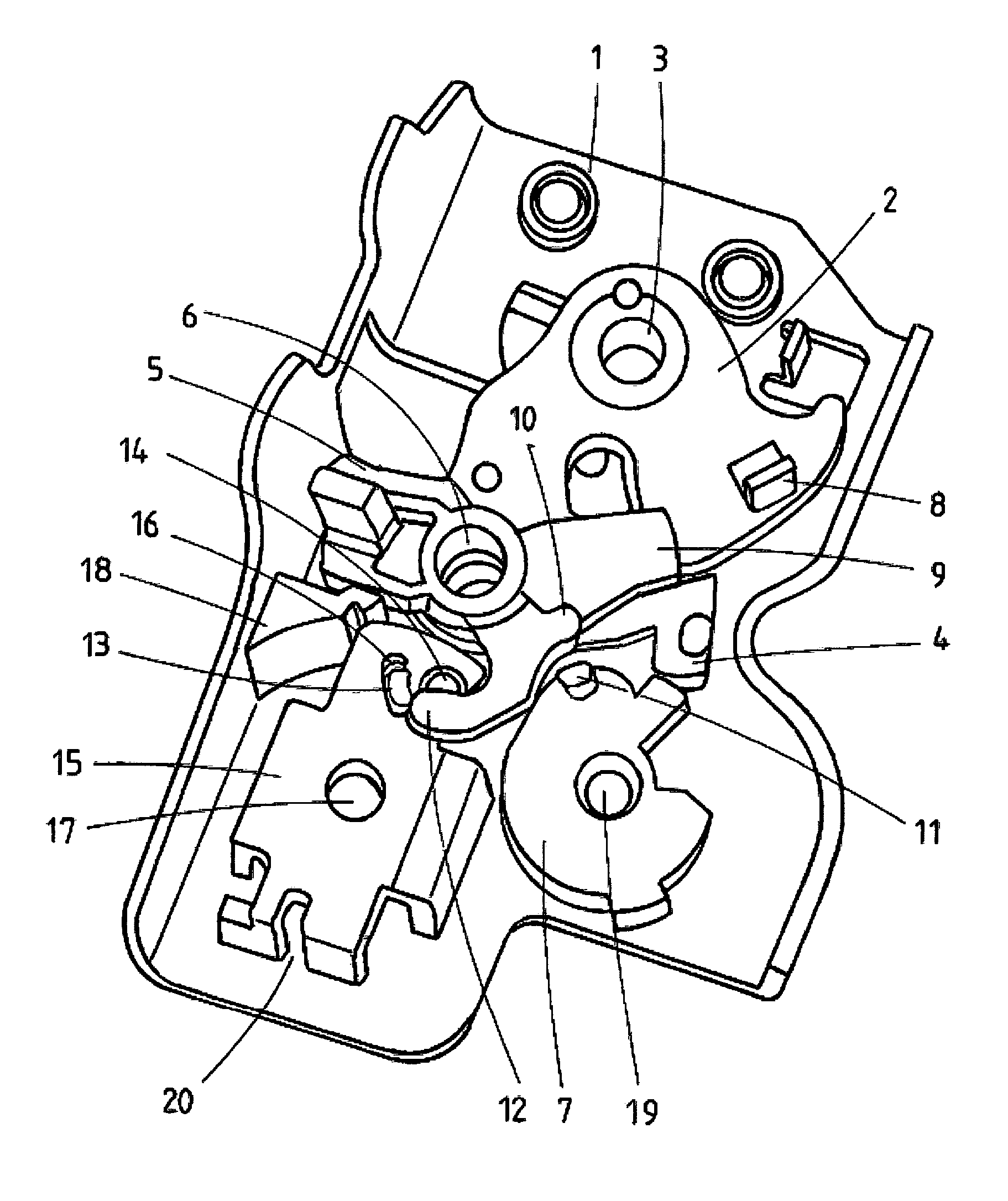

Abstract
The invention relates to a lock, in particular for a door or opening element of a motor vehicle, said lock comprising a locking mechanism with a rotary latch, a pawl for locking the rotary latch in a detent position, preferably a blocking lever for blocking the pawl in the detent position and a release lever for opening the locking mechanism, in particular by moving the blocking lever out of the blocking position. The lock is characterized in that a safety catch device of the lock, said device comprising in particular more than one catch position, is designed to prevent the opening of the locking mechanism during excessive acceleration, in particular during excessively violent acceleration of the release lever and/or handle of a door or opening element. An unplanned opening of the lock in the event of a crash can thus be avoided.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- E05B Class
- 824 Applications Filed
- 697 Patents Issued To-Date
- 84.59 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- E05B Class
- 26.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
