Steam iron
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Aug 11, 2015
filing date -
Aug 26, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

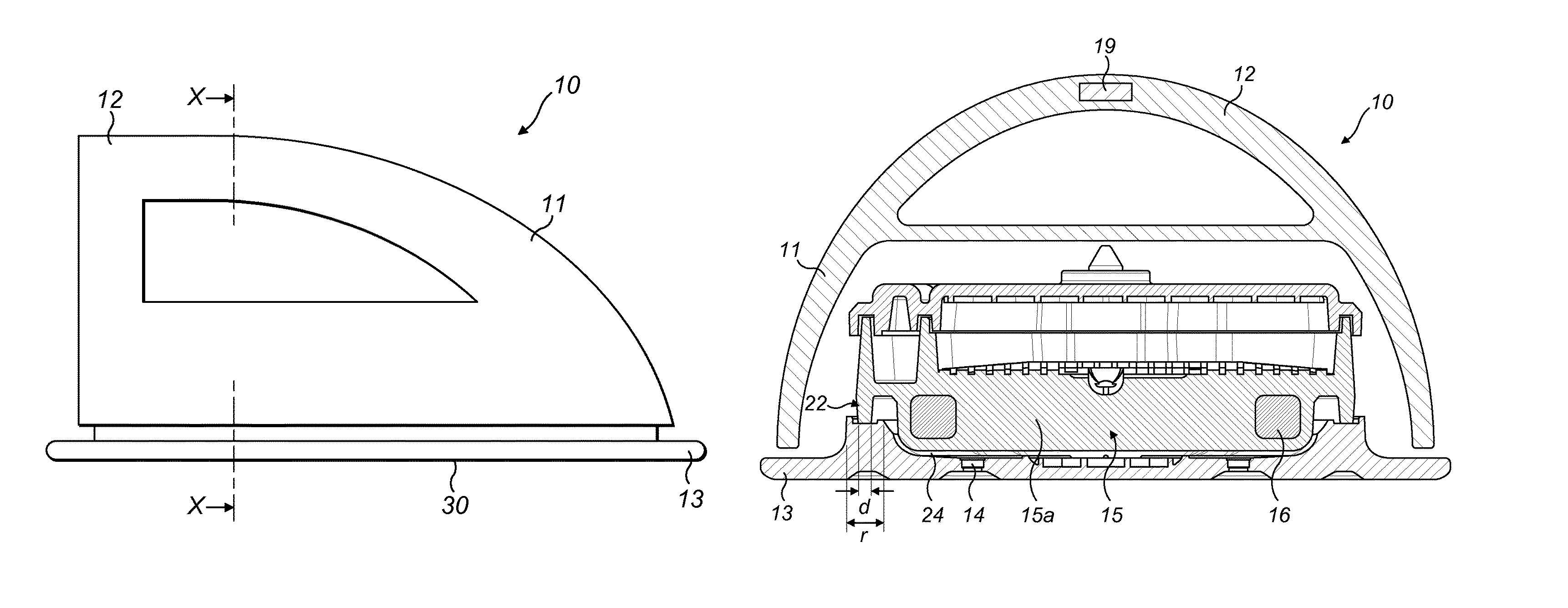

A steam iron (10) comprises a steam generator (15) comprising a main body portion (15a) including an electrical heating element (16) to heat the steam generator (15), and an ironing plate (13) coupled to the steam generator (15) via a thermal coupling and configured to be passively heated by conduction of heat from the steam generator (15) via the thermal coupling. The thermal coupling between the steam generator (15) and the ironing plate (13) comprises an indirect thermal path formed by a flange (22) of the steam generator (15), the flange (22) being in contact with the ironing plate (13) and being spaced from the main body portion (15a) of the steam generator (15), the flange (22) also being configured to space the main body portion (15a) of the steam generator (15) from the ironing plate (13) to restrict the conduction of heat from the main body portion (15a) of the steam generator (15) to the ironing plate (13).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- D06F Class
- 565 Applications Filed
- 454 Patents Issued To-Date
- 80.36 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- D06F Class
- 38.41 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
