Clothes dryer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Jun 18, 2014
filing date -
Jun 18, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

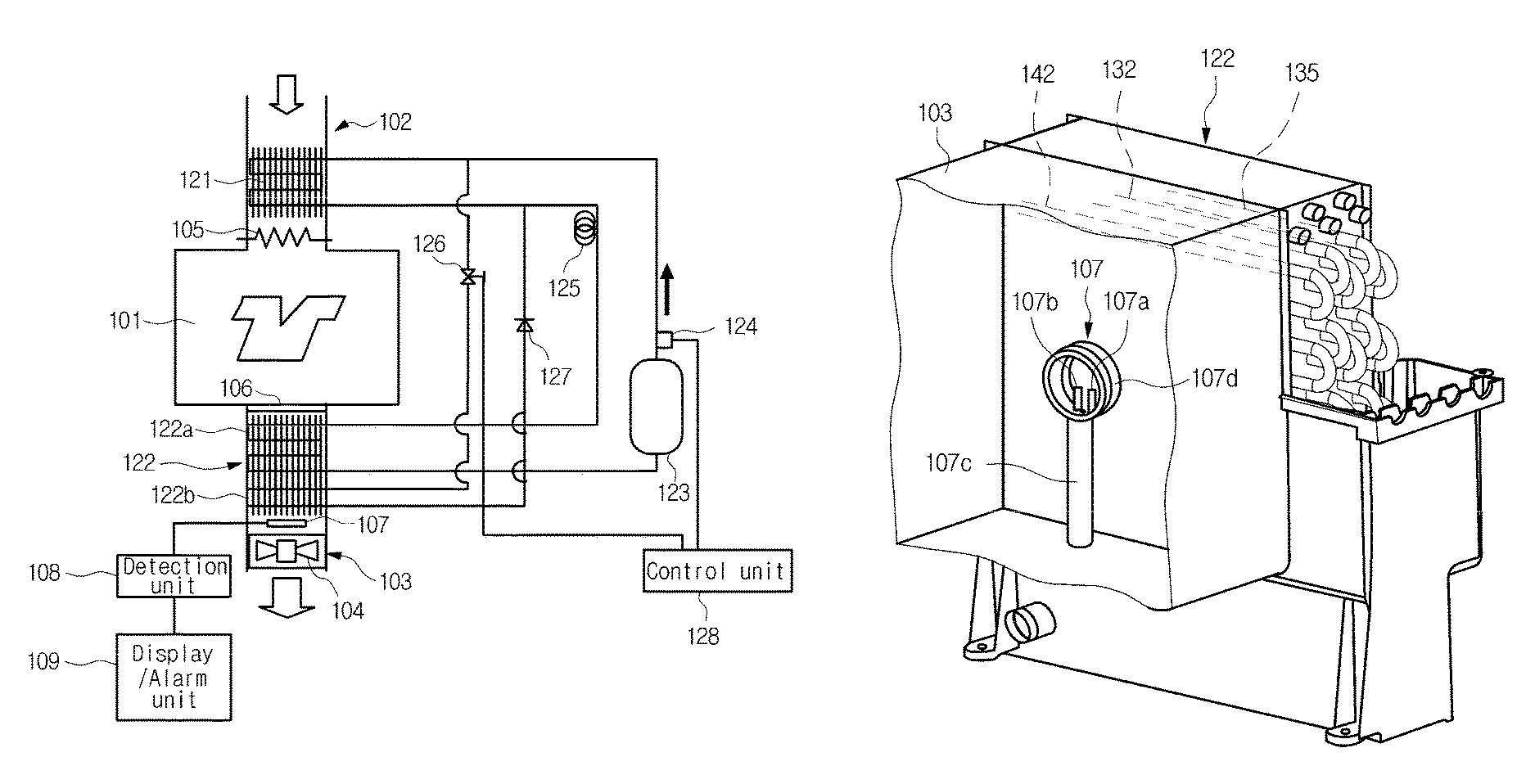

A clothes dryer configured to cause air to flow through a drying chamber, an exhaust passage (an air passage) 103 and a filter by a blower to dry clothes includes a heat pump installed in the exhaust passage (103) and having a heat exchanger (122) including a refrigerant pipe (132) and a pin, and a flow velocity sensor (107) of airflow having a hot thermistor (a heat generating body) 107a and a temperature compensation thermistor (a temperature detecting body) 107b and installed downstream from the heat exchanger (122), wherein the thermistors (107a and 107b) are disposed at a refrigerant pipe (132) of the heat exchanger (122) in parallel.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- D06F Class
- 508 Applications Filed
- 438 Patents Issued To-Date
- 86.23 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- D06F Class
- 38.41 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
