Method of producing a mash extract and an apparatus for performing such method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
May 16, 2007
filing date -
May 19, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

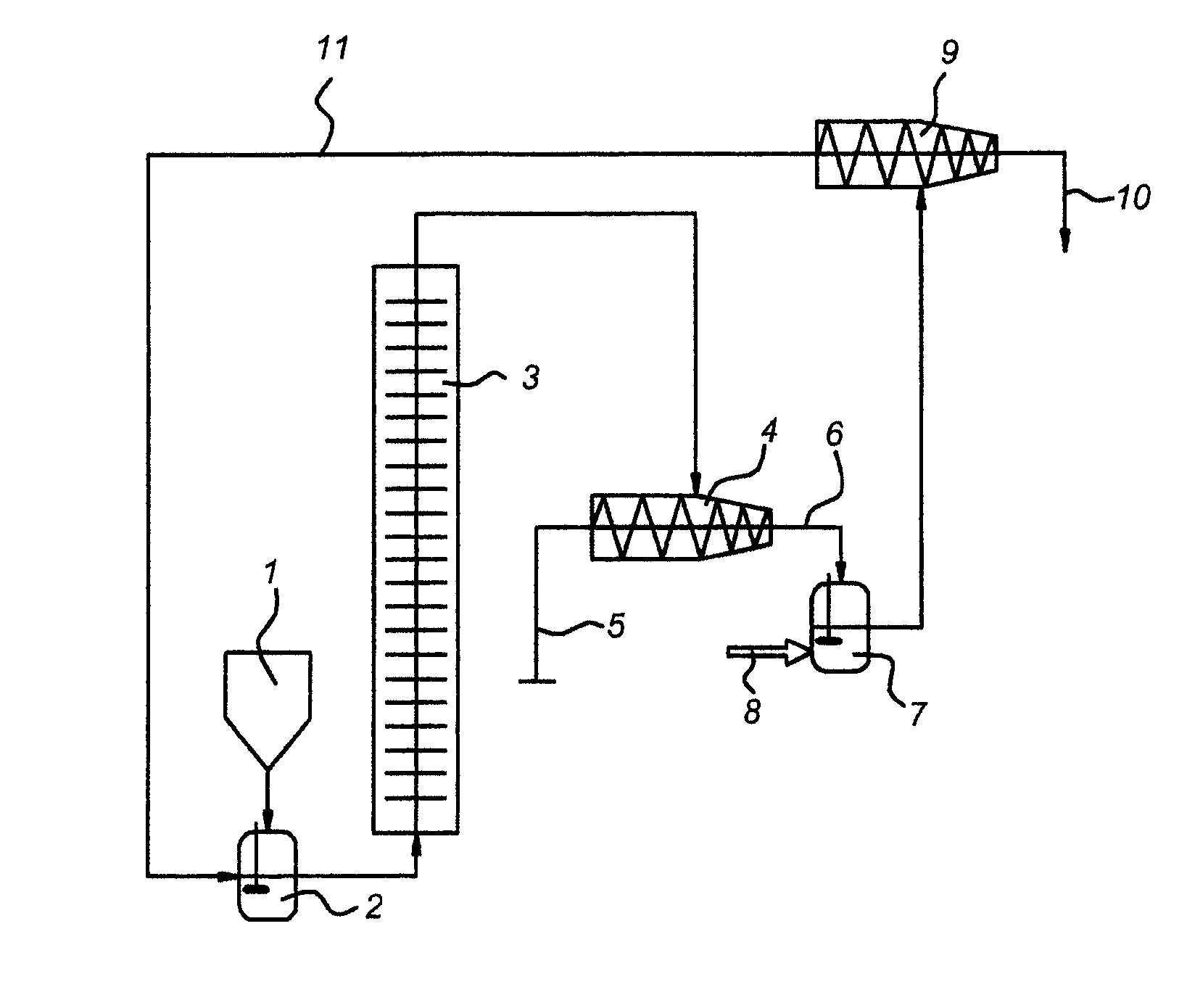

One aspect of the present invention relates to a method of producing a mash extract, said method comprising:
- a. mashing particulate, starch-containing and optionally malted raw materials with a recirculated aqueous stream;b. heating the mash and enzymatically hydrolysing the starch;c. transferring the heat-treated mash into a first separator for separation into mash extract and spent grain;d. transferring the spent grain into a first mixing vessel and mixing it with sparging water;e. transferring the mixture of spent grain and sparging water into a second separator to remove spent grain;f. recirculating an aqueous stream from the second separator to the mashing step,wherein the gravity of the fermentable mash extract obtained from the first separator is maintained at above 15° P.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2007 Application Filing Year
- C12C Class
- 21 Applications Filed
- 15 Patents Issued To-Date
- 71.43 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C12C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
