Methods and apparatus for conveying a glass ribbon
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Grant Date -
Mar 17, 2016
app pub date -
Apr 30, 2014
filing date -
May 3, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

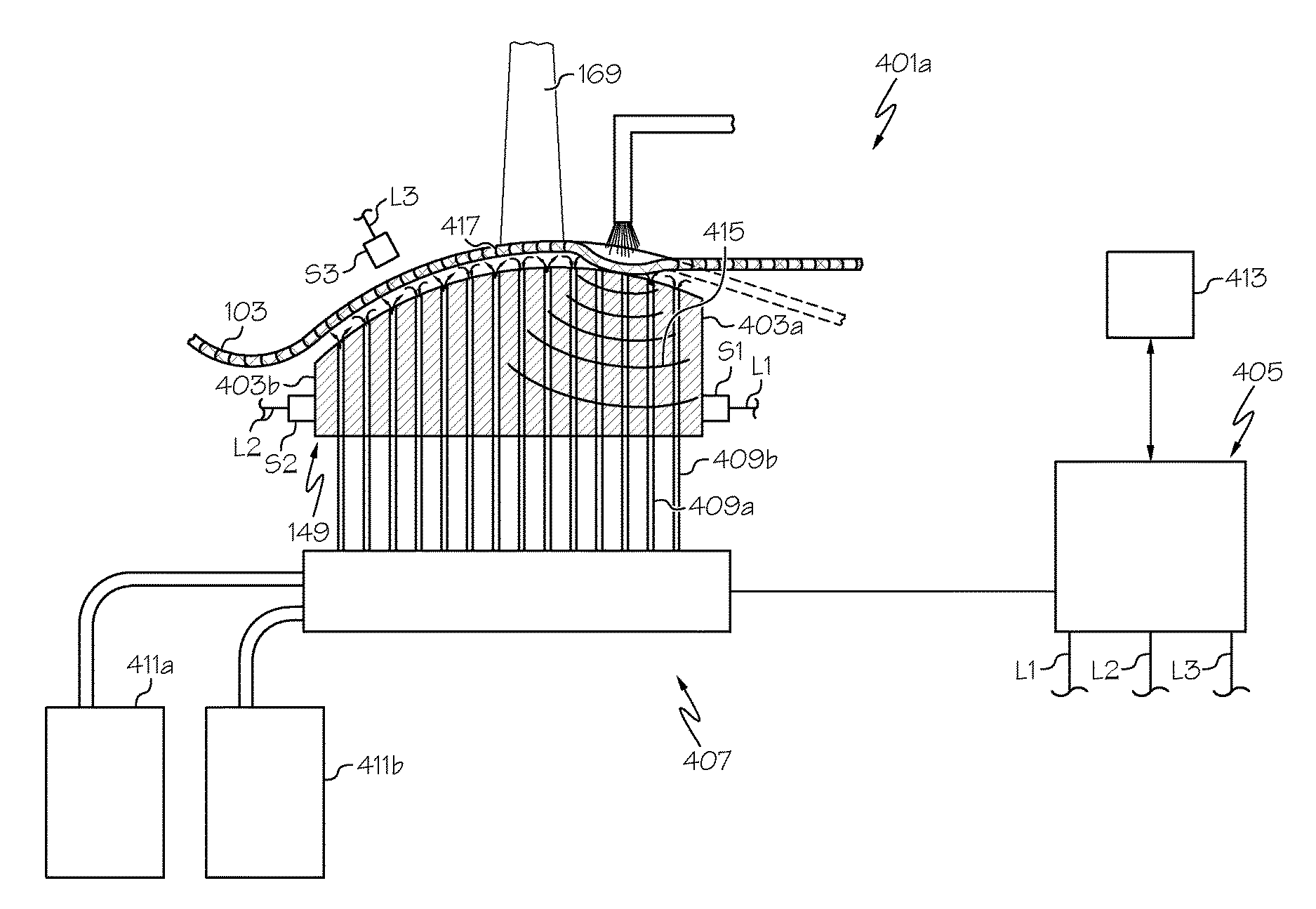

Methods of conveying a glass ribbon are provided that each includes the step of conveying the glass ribbon over a support device with a cushion of fluid supporting the glass ribbon over the support device. Each method further includes the step of monitoring a physical contact event between the glass ribbon and the support device by detecting an acoustic signal associated with the physical contact event. In further examples, glass ribbon conveying apparatus are provided that each includes a support device configured to support a glass ribbon over the support device with a cushion of fluid. Each apparatus further includes an acoustic sensor configured to monitor a physical contact event between the glass ribbon and the support device by detecting an acoustic signal associated with the physical contact event.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- C03B Class
- 471 Applications Filed
- 369 Patents Issued To-Date
- 78.35 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 23 Citation Count
- C03B Class
- 98.58 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
