Electronically controlled hydraulic swing system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Mar 3, 2015
filing date -
Mar 4, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

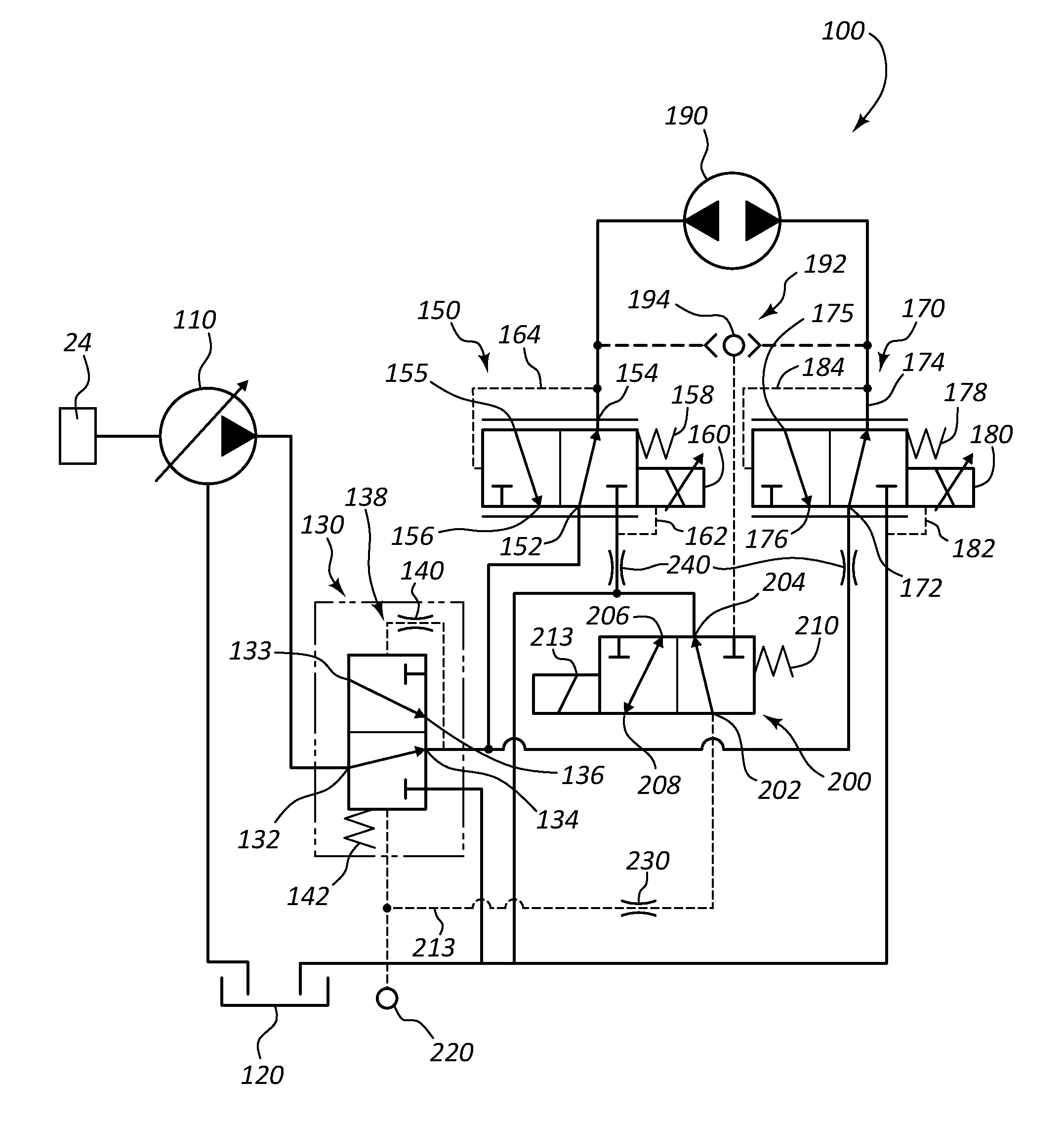

A hydraulic circuit for use on a construction machine includes a first valve, a second valve, and at least a third valve. The second and third valve each includes at least one inlet port connected to a first outlet port of the first valve. The first outlet port of each of the second and third valves are configured to reduce a first pressure to a second pressure and/or a third pressure downstream of the second valve and the third valve, respectively. The second valve and the third valve also include at least a second outlet port connected to a reservoir tank. A hydraulic motor is connected to the first outlet port of the second valve, which operates the hydraulic motor in a first direction. The hydraulic motor also is connected to the first outlet port of the third valve, which operates the hydraulic motor in a second direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F15B Class
- 624 Applications Filed
- 480 Patents Issued To-Date
- 76.93 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F15B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
