Stand-off panel thermal protection system and method of fabricating the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Jun 12, 2015
filing date -
Jun 12, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

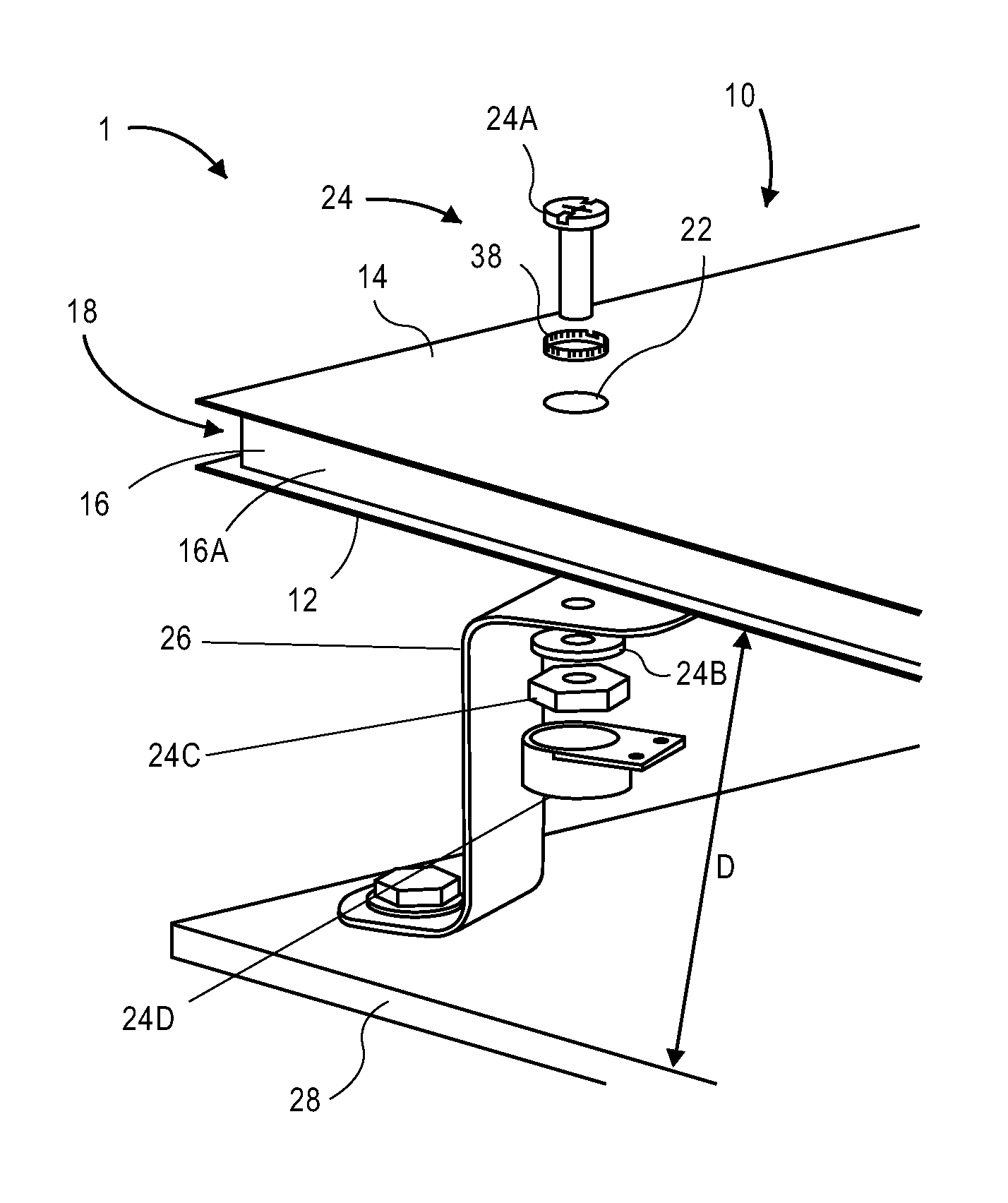

A stand-off panel thermal protection system includes a sandwich panel comprising: a first ceramic matrix composite facesheet and a second ceramic matrix composite facesheet. A ceramic matrix composite core is positioned between the first ceramic matrix composite facesheet and the second ceramic matrix composite facesheet. The ceramic matrix composite core has a perimeter. The first ceramic matrix composite facesheet and the second ceramic matrix composite facesheet extend past the perimeter to form a gap between the first ceramic matrix composite facesheet and the second ceramic matrix composite facesheet surrounding the ceramic matrix composite core. A plurality of orifices are formed through the sandwich panel. The thermal protection system further comprises a soft goods seal positioned in the gap; a plurality of insulation components; a plurality of stand-off brackets; and a plurality of fasteners positionable through the plurality of orifices to couple the sandwich panel to the plurality of brackets.
First Claim
Family
International Classification(s)
- 2015 Application Filing Year
- B64G Class
- 249 Applications Filed
- 209 Patents Issued To-Date
- 83.94 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B64G Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
