Coated fabric and method for producing same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Aug 26, 2013
filing date -
Aug 28, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

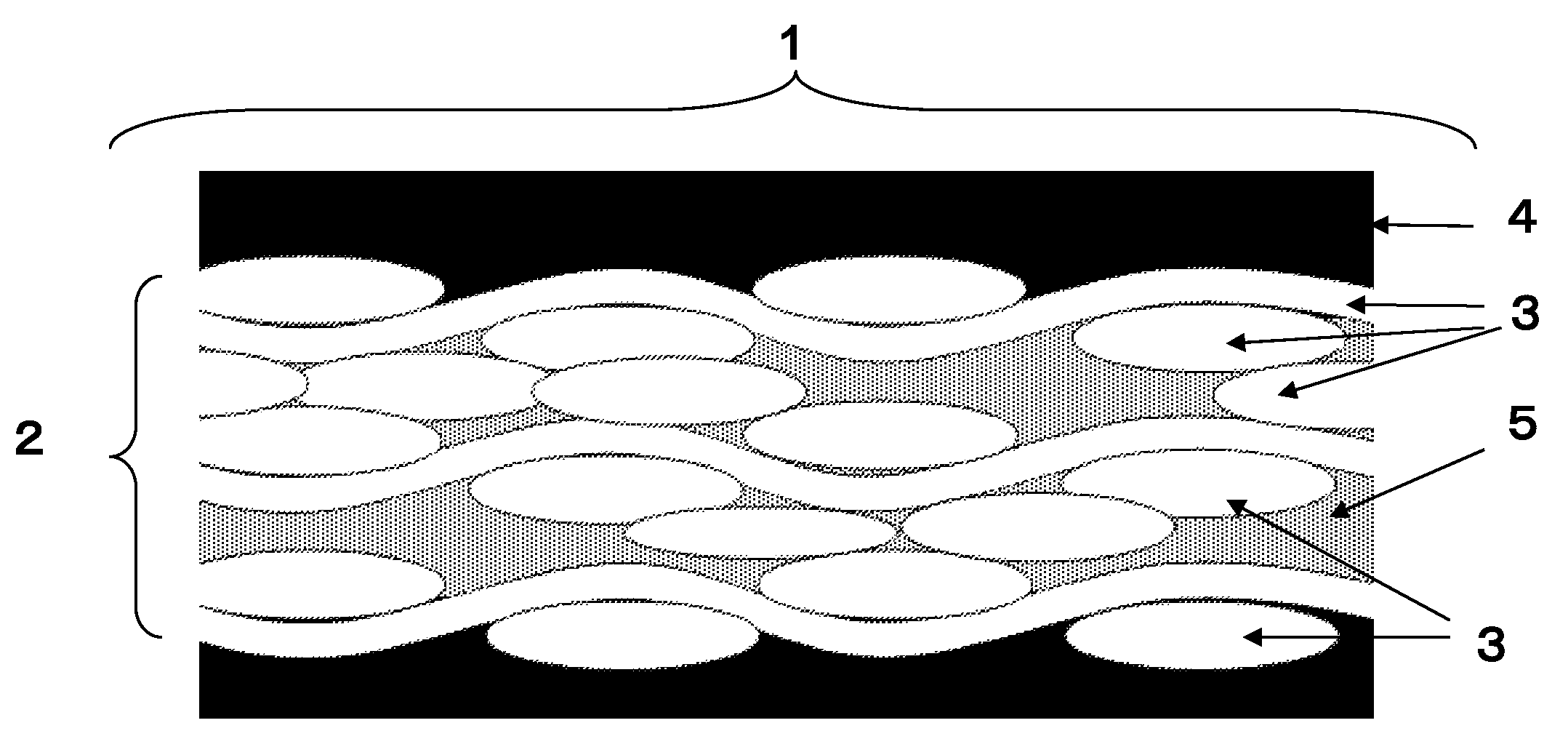

The present invention addresses the problem of providing a cloth which, when used as an air bag main body cloth, does not undergo the damage caused by a high-temperature gas generated from an inflater, and therefore has high heat resistance and is suitable for an air bag. The means for solving the problem is a coated cloth for an air bag, which is produced by applying an elastomer resin layer on at least one surface of a three-dimensional woven fabric in an amount of 50 to 500 g/m2 per one surface, said coated cloth being characterized by having void spaces formed therein, wherein the void content in the coated cloth is 15 to 60%. Preferably, the coated cloth is used in applications in which the coated cloth is attached onto the periphery of an inflater connection opening in an air bag.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- D03D Class
- 186 Applications Filed
- 153 Patents Issued To-Date
- 82.26 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- D03D Class
- 45.42 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
