Device for transmitting data between a data transmission device of a vehicle and a data transmission device of a communications network as part of a charging process of an electrical energy store of the vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Sep 21, 2015
filing date -
Mar 22, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

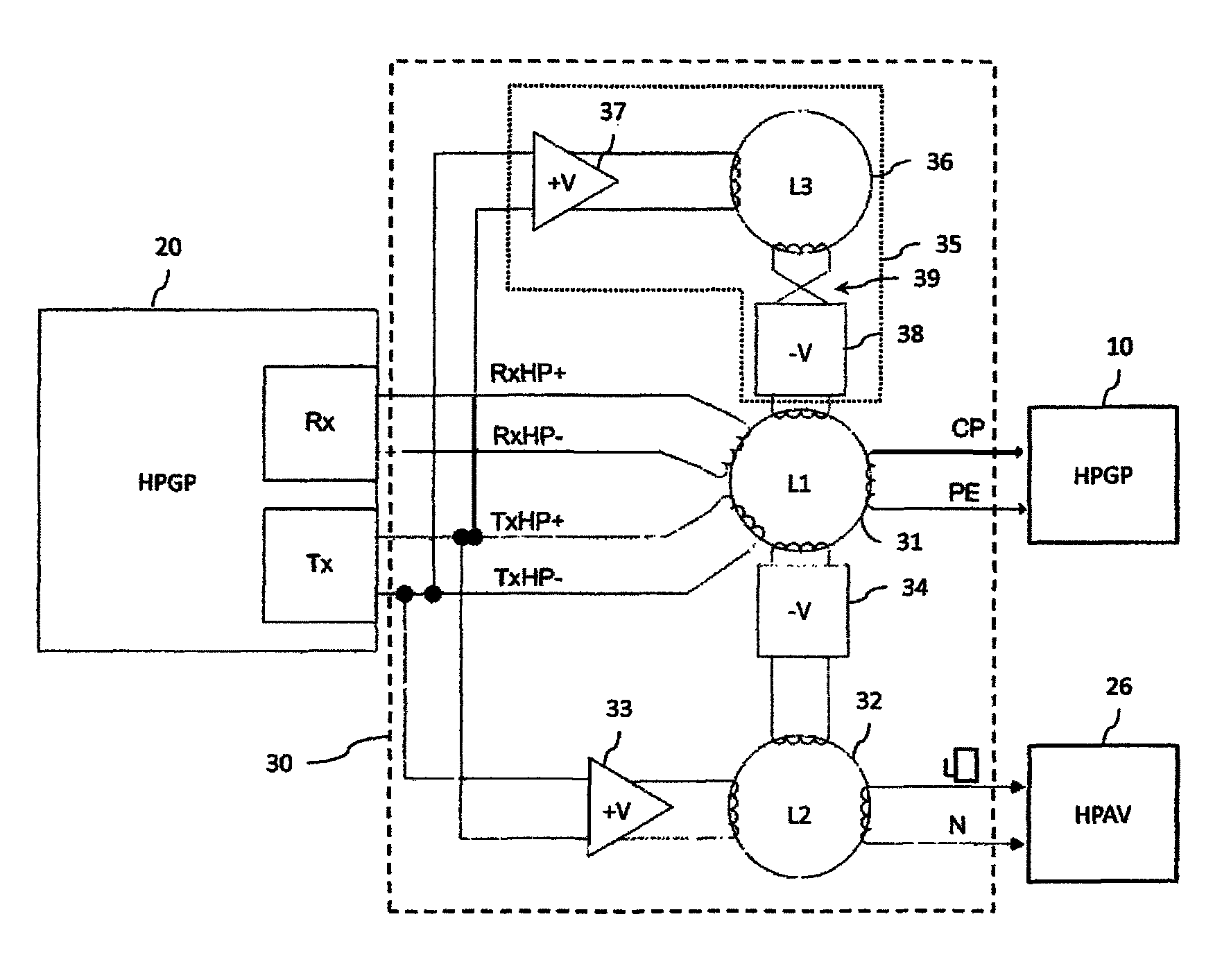

A device for transmitting data between a data transmission device of a vehicle and a data transmission device of a communications network, as part of a charging process of an electrical energy store of the vehicle, is disclosed. The vehicle data transmission device is based on a first communications protocol with a first signal level, while the communications network data transmission device is based on a second communications protocol with a second signal level. The device includes a signal-matching device having at least one first coupling transformer, which couples a data transmission device of a charging station to the data transmission devices of the vehicle and of the communications network via respective coils. The signal-matching device is configured to match the first signal level to the second signal level and vice versa.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
