Vehicle wheel assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Jul 30, 2014
filing date -
Jul 30, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

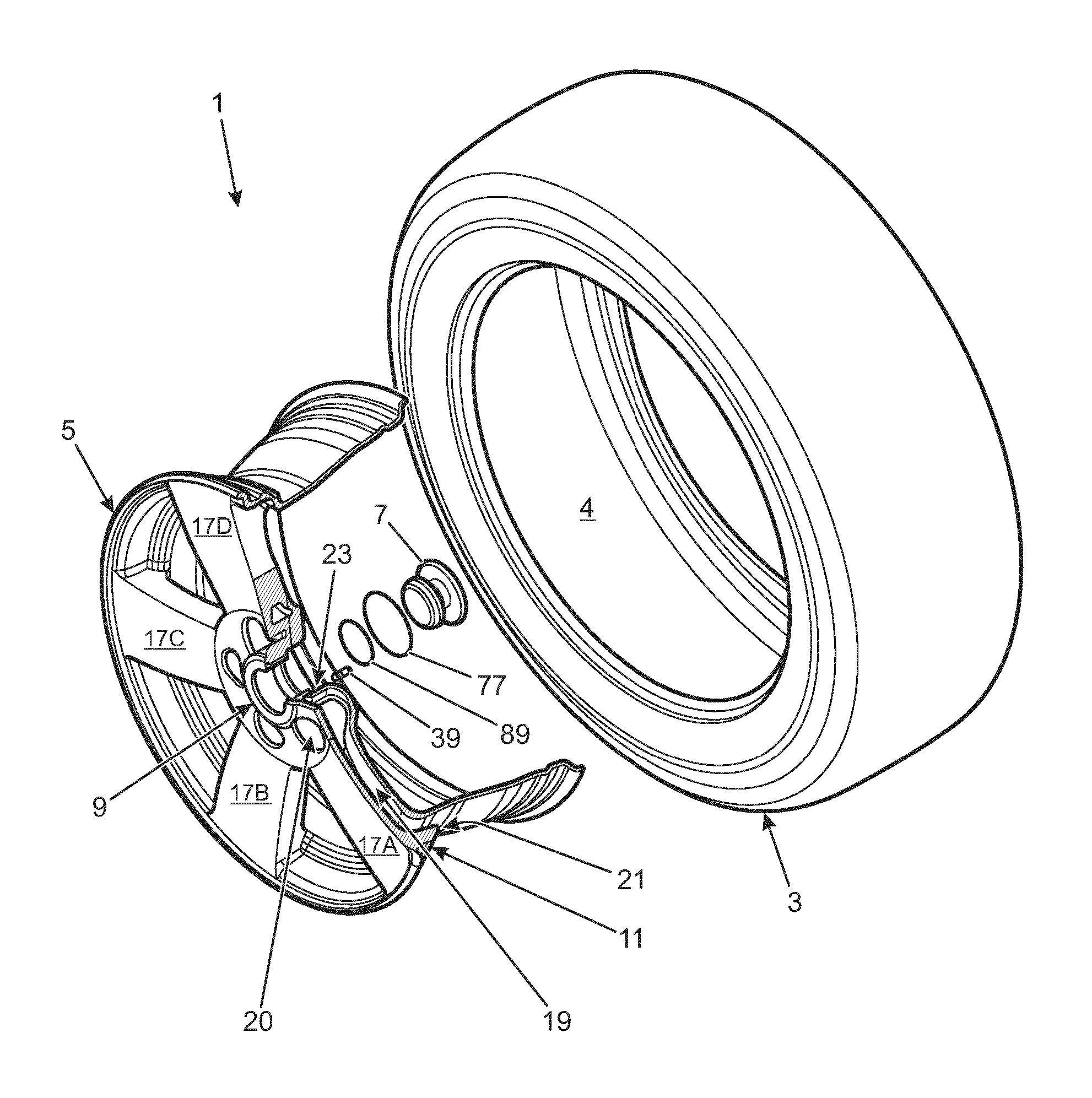

A vehicle wheel assembly (1) for supplying compressed air from a vehicle axle to a tire (3) comprises a vehicle wheel (5) and a control valve assembly (7). The wheel (5) comprises a wheel hub (9) for mounting the wheel (5) to a vehicle (V); and a wheel rim for mounting a tire (3) on the wheel (5). A transfer line (19) is provided in the wheel for transferring compressed air from the wheel hub to the wheel rim (11) for inflating the tire (3). The control valve assembly (7) comprises an inlet, an outlet and a control valve (25) operably located between the inlet and the outlet for controlling passage of compressed air between the inlet and the outlet. The control valve assembly (7) is removably disposed in the wheel hub (9) such that fluid communication is established between the control valve assembly (7) and the transfer line (19).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F16K Class
- 1571 Applications Filed
- 1342 Patents Issued To-Date
- 85.43 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F16K Class
- 35.97 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
