Wheel for vehicles and method for manufacturing the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Nov 30, 2015
filing date -
Apr 16, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

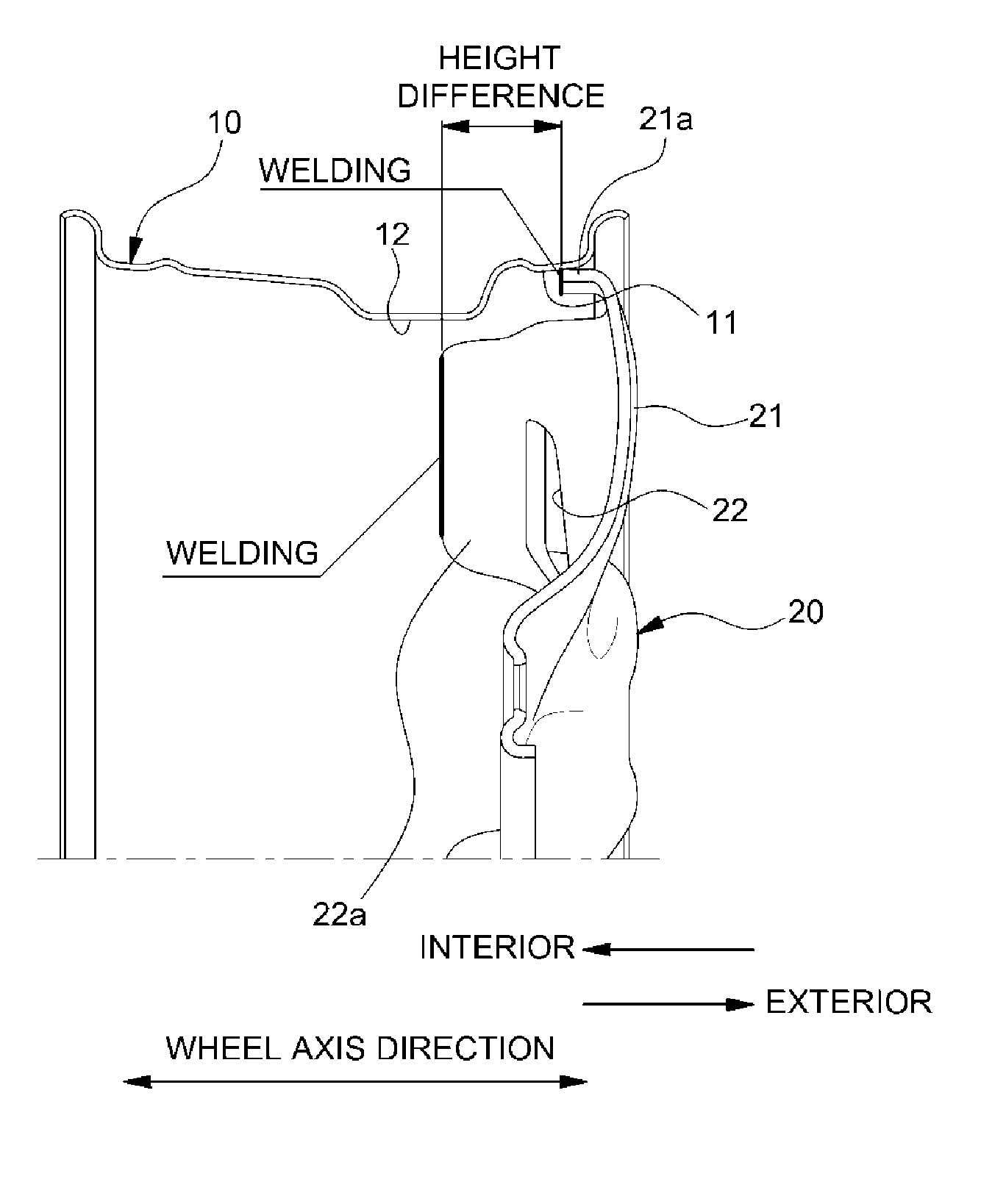

A wheel for vehicles may include a rim coupled to a tire, and a spoke-shaped disc including a spoke and a vent hole, the spoke-shaped disc being coupled to a side surface of the rim to support the rim, in which a coupling zone between the spoke of the spoke-shaped disc and the rim and a coupling zone between a portion of the spoke-shaped disc formed with the vent hole and the rim have a height difference in a wheel axis direction, to allow the spoke-shaped disc to support the rim at an interior and an exterior of the rim.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2015 Application Filing Year
- B60B Class
- 436 Applications Filed
- 356 Patents Issued To-Date
- 81.66 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- B60B Class
- 36.18 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
