Liquid discharge apparatus and liquid discharge apparatus unit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Mar 25, 2016
filing date -
Mar 31, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

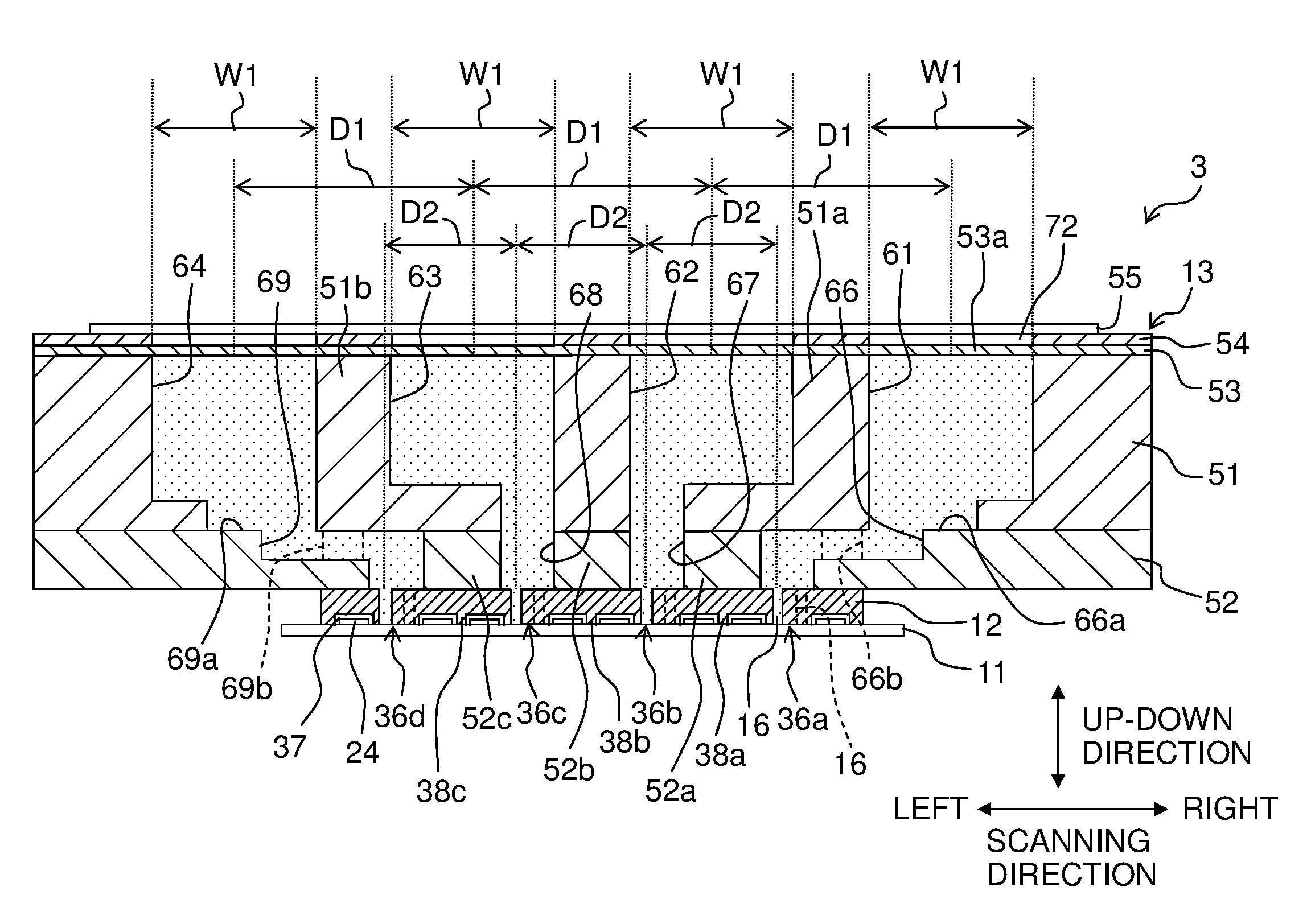

A liquid discharge apparatus includes an individual flow passage member; and a common flow passage member joined to the individual flow passage member in a first direction. The individual flow passage member has nozzle groups formed on a surface on a side opposite to the common flow passage member and connecting hole groups formed on a surface on a side of the common flow passage member; and the common flow passage member has manifold flow passages corresponding to the connecting hole groups respectively. Each of the nozzle groups includes nozzles aligned in a second direction orthogonal to the first direction; and each of the connecting hole groups includes connecting holes aligned in the second direction and connected to the nozzles respectively. Each of the manifold flow passages extends in the second direction and is connected to the nozzles via the connecting holes.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B41J Class
- 28.29 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
