Metamaterial thin films
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Mar 5, 2013
filing date -
Mar 5, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

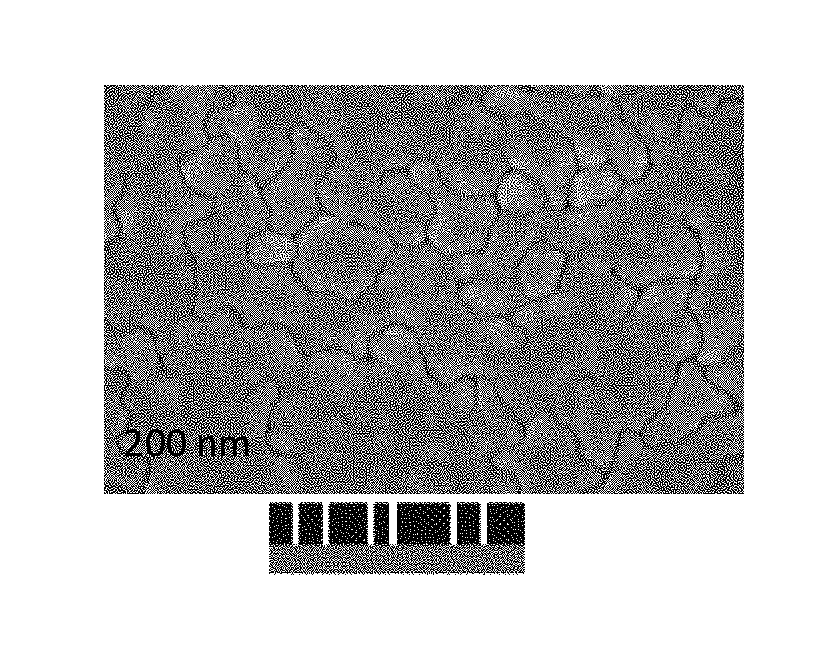

A metamaterial thin film with plasmonic properties formed by depositing metallic films by atomic layer deposition onto a substrate to form a naturally occurring mosaic-like nanostructure having two-dimensional features with air gaps between the two-dimensional features. Due to the unique deposition nanostructure, plasmonic thin films of metal or highly conducting materials can be produced on any substrate, including fabrics and biological materials. In addition, these plasmonic materials can be used in conjunction with geometric patterns that may be used to create multiple resonance plasmonic metamaterials.
