Diagnostic instrument and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Feb 19, 2014
filing date -
Feb 19, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

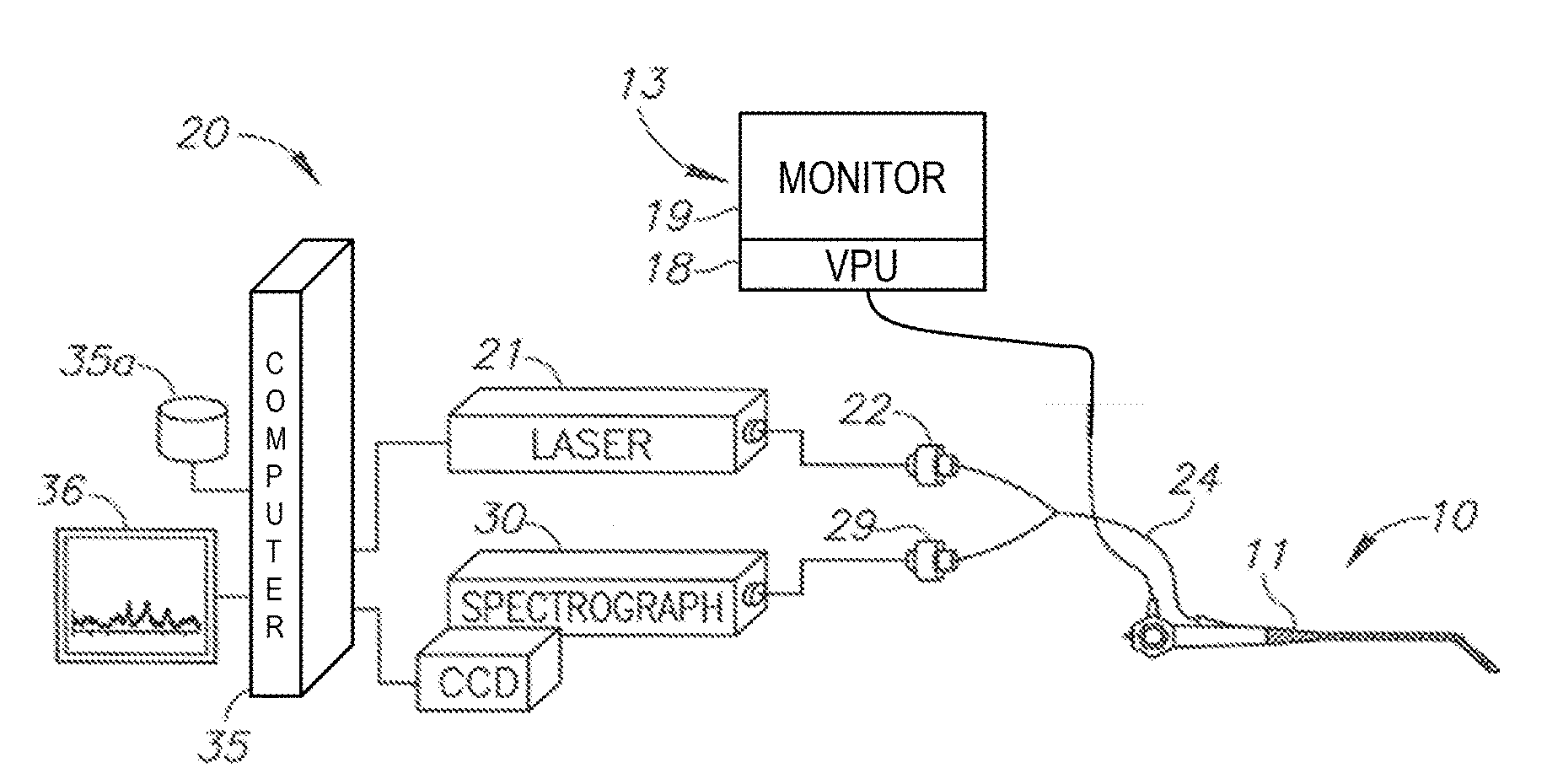

A diagnostic instrument comprises a monochromatic light source, transmission means to transmit light from the light source to a test site, collection means to transmit scattered light from the test site, and spectral analysis apparatus to receive light from the collection means, the spectral analysis apparatus comprising a diffraction grating having a first grating element and a second grating element, wherein the first grating element diffracts light within a first wavelength range and the second grating element diffracts light within a second wavelength range, the spectral analysis apparatus further comprising a light-sensing apparatus, the first grating element arranged to diffract light onto a first area of the light-sensing apparatus and the second grating element arranged to diffract light onto a second area of the light-sensing apparatus.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| GB | D0 | GB201302886 | Feb 19, 2013 |
| WO | A1 | WO2014129970 | Feb 19, 2014 |
| EP | A1 | EP2959275 | Feb 19, 2014 |
| JP | B2 | JP6531044 | Feb 19, 2014 |
| CN | B | CN105190262 | Feb 19, 2014 |
International Classification(s)
- 2014 Application Filing Year
- G01J Class
- 1566 Applications Filed
- 1387 Patents Issued To-Date
- 88.57 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G01J Class
- 24.81 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
