Portable electronic device provided with a battery enclosure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Oct 19, 2016
filing date -
Dec 11, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

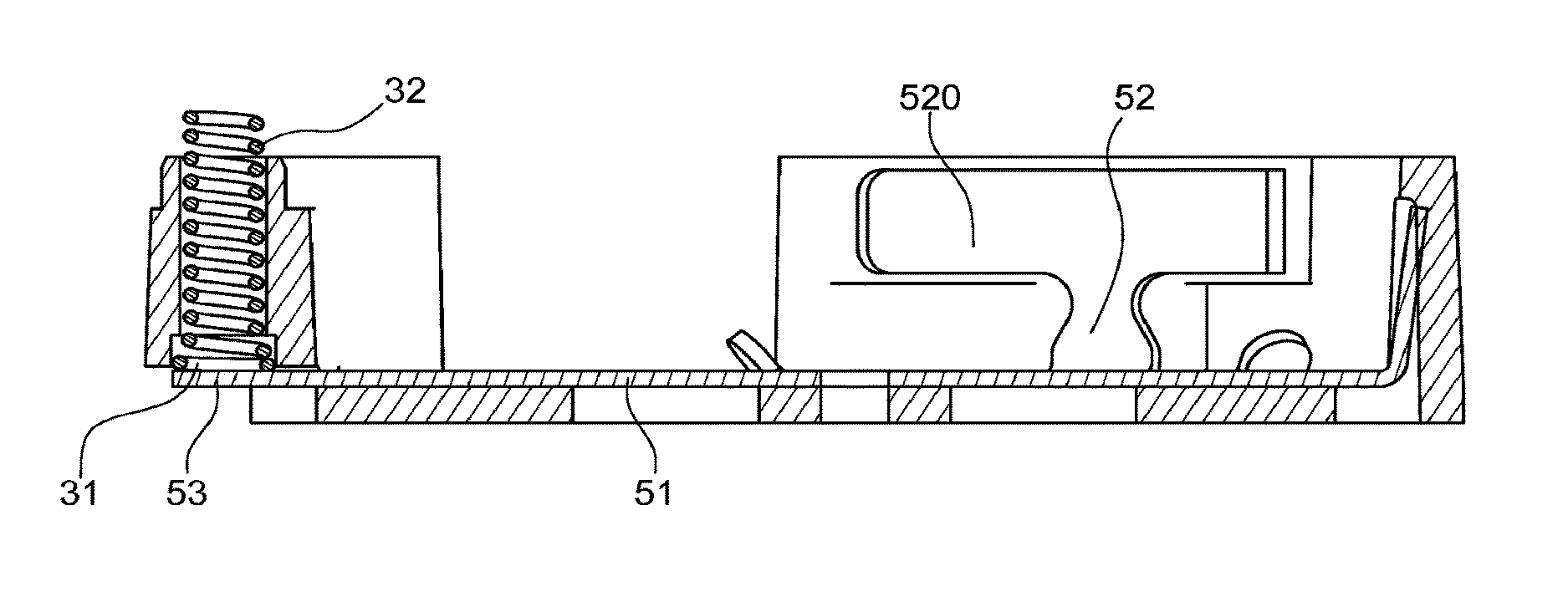

A portable electronic device includes at least one electronic module and the electronic module includes, in particular, a main plate provided with a cavity arranged for receiving an electrical energy source, at least one movement associated with a printed circuit, an elastically deformable contact member for ensuring an electrical connection between the electrical energy source and the printed circuit, and a holder for holding the electrical energy source. The holder includes a removable holder made of insulating material arranged to receive the energy source and including a removable clamp for holding the energy source in place. The holder can be inserted inside the cavity.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01M Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
