Composite electronic component and board on which composite electronic component is mounted
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Jun 28, 2016
filing date -
Oct 1, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

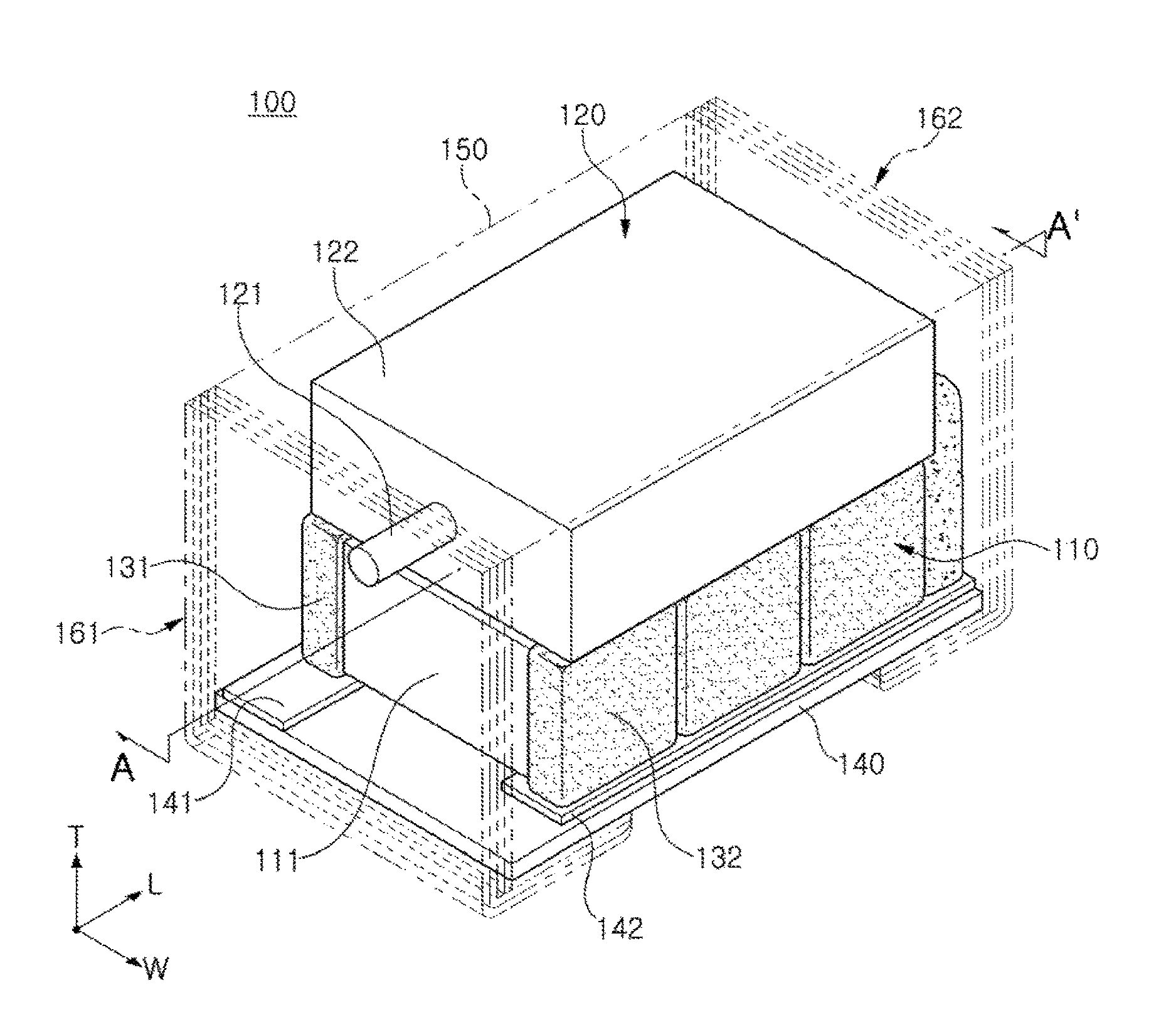

A composite electronic composite includes a plurality of multilayer ceramic capacitors each including a ceramic body in which dielectric layer and internal electrodes are alternately disposed and first and second external electrodes disposed on a lower surface of the ceramic body, a tantalum capacitor including a body part including a sintered tantalum powder material and a tantalum wire of which a portion is embedded in the body part and disposed on the plurality of multilayer ceramic capacitors, and a molding portion enclosing the tantalum capacitor and the plurality of multilayer ceramic capacitors.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H01G Class
- 1145 Applications Filed
- 847 Patents Issued To-Date
- 73.98 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01G Class
- 20.30 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
