Driving circuit and driving method of organic light emitting diode
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Feb 19, 2016
filing date -
Sep 8, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

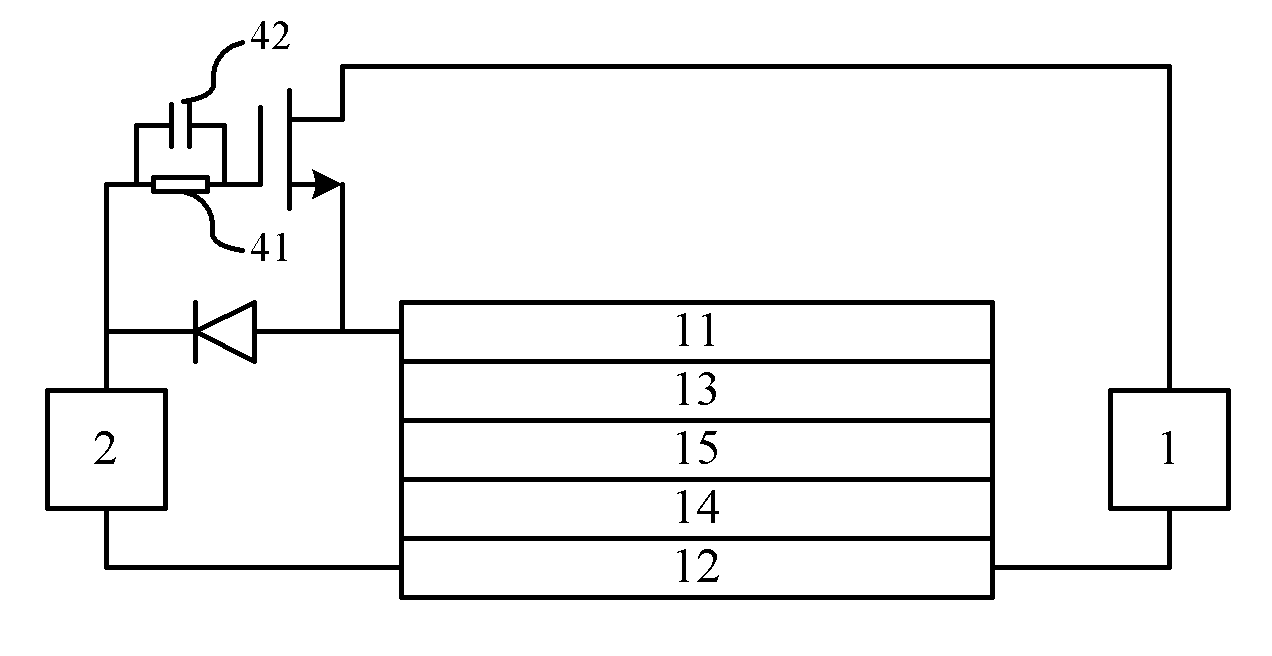

The present invention relates to a driving circuit of organic light emitting diode comprising an electricity storage unit having a positive polarity at a first terminal and a negative polarity at a second terminal, and a signal input unit having opposite polarities at the first and second terminals, the signal polarity of the signal input unit being changed according to a preset frequency; a control unit, which causes the first terminal of the signal input unit to transmit negative charges to the anode of the organic light emitting diode and causes the second terminal of the signal input unit to transmit positive charges to the cathode of the organic light emitting diode, when the signal polarity at the first terminal of the signal input unit is negative and the signal polarity of the second terminal thereof is positive, and causes the first terminal of the electricity storage unit to transmit positive charges to the anode of the organic light emitting diode and causes the second terminal of the electricity storage unit to transmit negative charges to the cathode of the organic light emitting diode, when the signal polarity at the first terminal of the signal input unit is positive and the signal polarity of the second terminal thereof is negative. The embodiments of the application can make the cathode of the organic light emitting diode accumulate electrons during the non-excitation period, so that when the electricity storage unit drives the organic light emitting diode to emit light, more electrons can pass through the light emitting layer, so that the excitation subjected by the light emitting layer is improved and more light is emitted.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H05B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
