Method and system for P2P communications and decentralized spatial sharing in wireless networks with directional transmissions
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Jun 7, 2016
filing date -
Jun 7, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

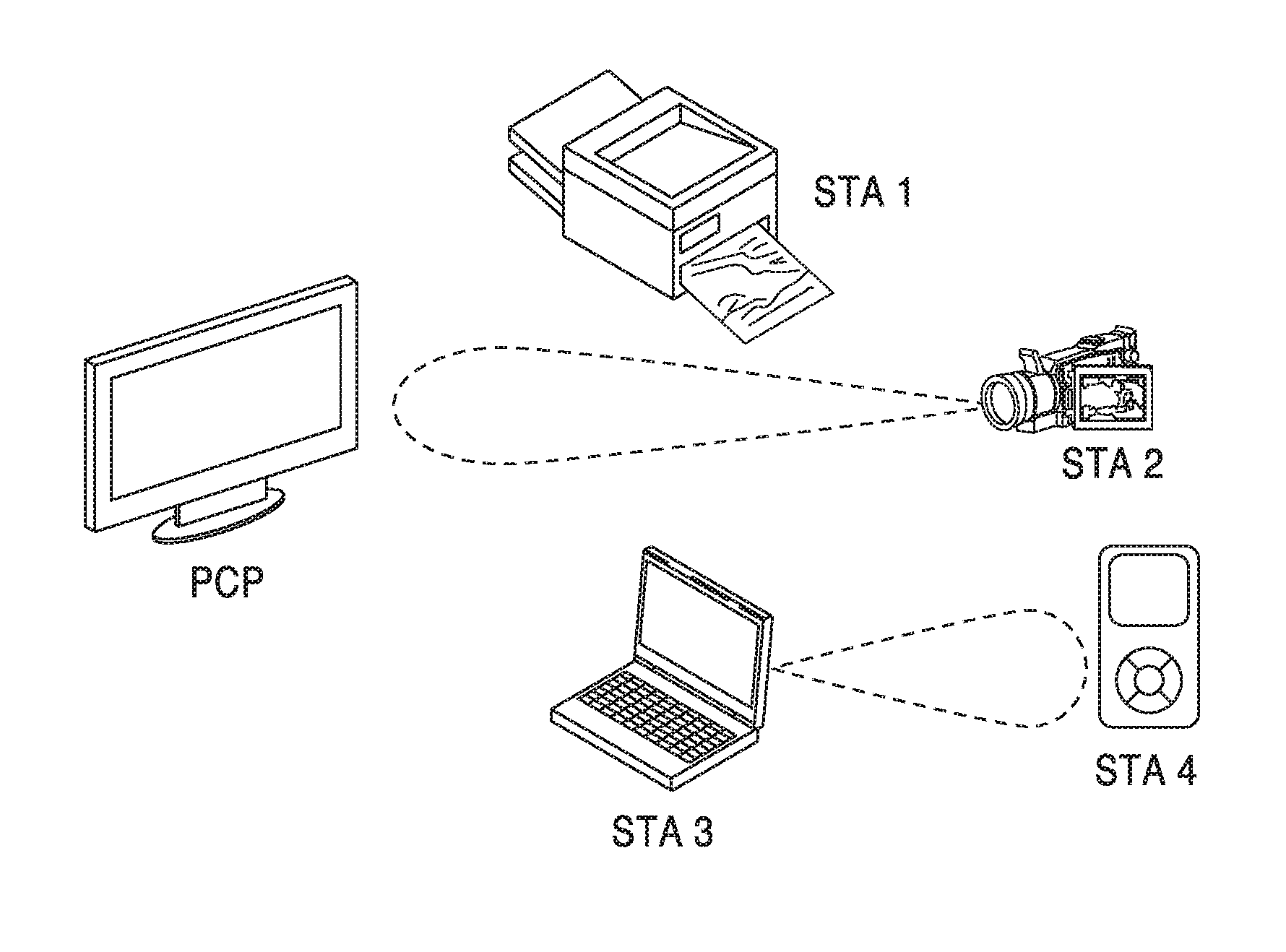

Beamformed directional wireless communications are described that provide for spatial re-use that allows multiple pairs of peer-to-peer (P2P) links to communicate simultaneously over the same channel in the same spatial vicinity, without contention, and independent of centralized control. The spatial re-use improves network throughput by sharing spectrum resource among multiple links. Beamformed training includes obtaining best sector and least sector information by all stations. Prior to performing an independent P2P communication, antenna array sector information is checked, to assure that the sector to be selected is not impinging interference on other P2P interactions, then a request is made to a target station. The target station also refers to its sector information, and if no conflict is found it accepts and acknowledges the request, upon which it receives the P2P communication.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H04L Class
- 37326 Applications Filed
- 27972 Patents Issued To-Date
- 74.94 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H04L Class
- 17.38 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
