Method for managing heterogeneous cellular networks
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Aug 21, 2015
filing date -
Dec 4, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

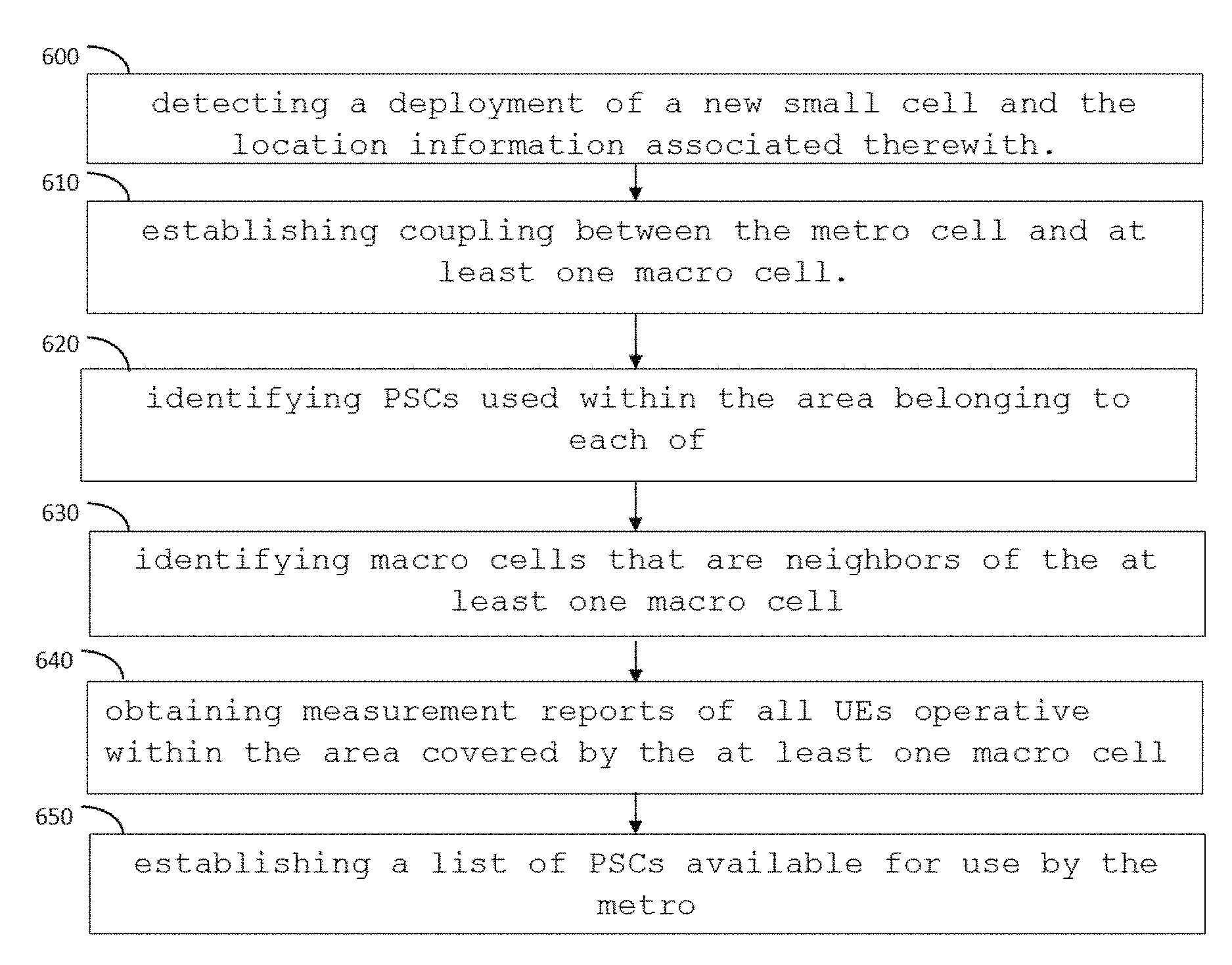

A method is provided for managing heterogeneous cellular networks. The method comprises obtaining measurement reports from wireless entities relating to the intensity at which signals are received by each wireless entity; based on these measurement reports, and/or on geographical information of HetNet elements, identifying a macro cell located at the vicinity of the small cells; selecting one of the small cells to be a gateway cell, and other small cells to be inner cells. The gateway cell is a small cell that receives, or mobile terminals connected thereto receive, signals transmitted by the macro cell at an intensity being at least similar to intensity at which these signals are received at the inner cells; identifying physical layer identifiers (PLIs) used at the macro cell; and determining PLIs for the gateway cell which are not currently used by the macro cell, and PLIs available for use by the inner cells.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H04W Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
