Method and system for testing temperature tolerance limit of loudspeaker
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Dec 7, 2015
filing date -
Jun 1, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

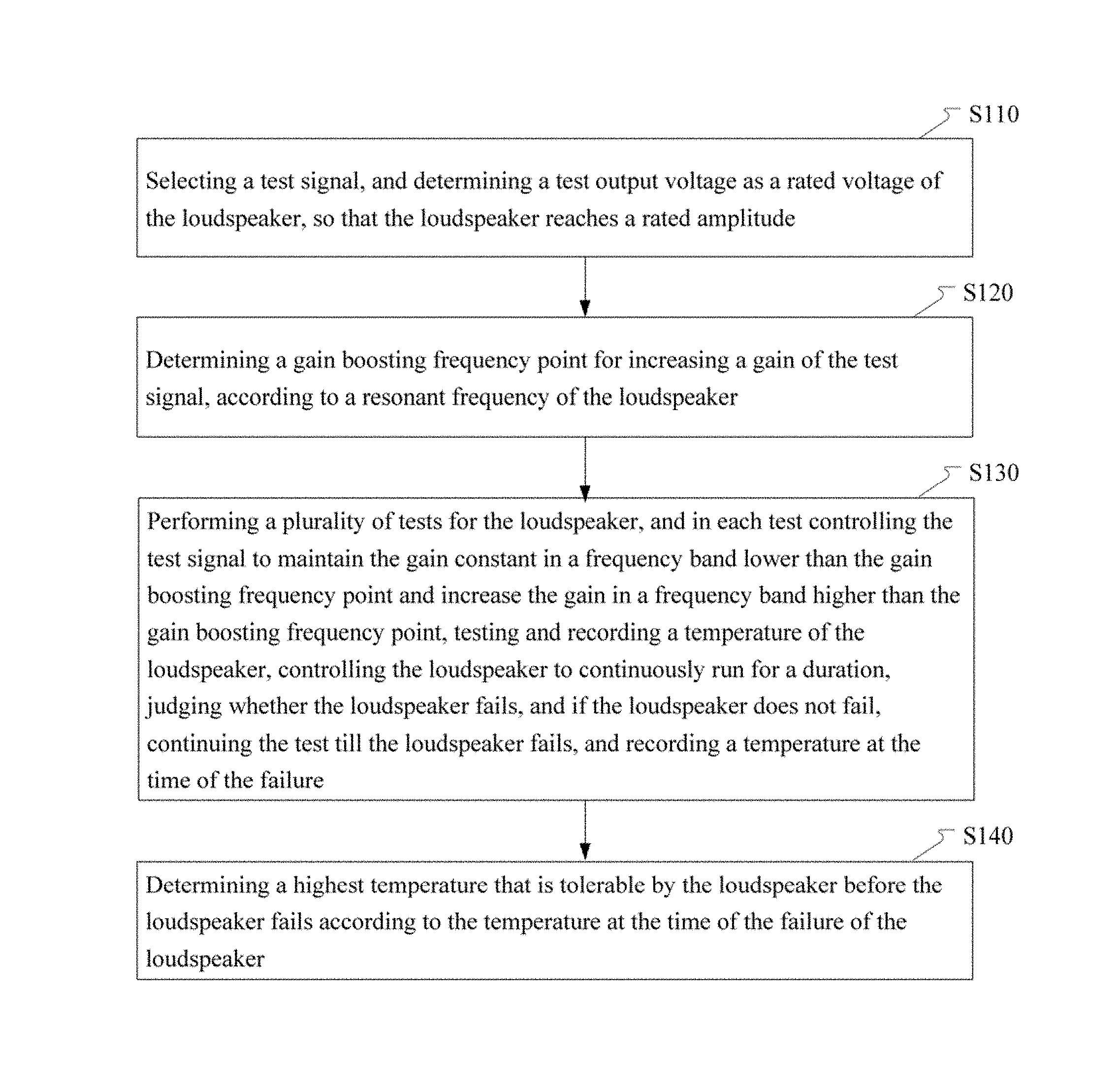

A method and system for testing a temperature tolerance limit of a loudspeaker. The method includes: selecting a test signal, and determining a test output voltage as a rated voltage of the loudspeaker, so that the loudspeaker reaches a rated amplitude; determining a gain boosting frequency point according to a resonant frequency of the loudspeaker; performing a plurality of tests for the loudspeaker, and in each test controlling the test signal to maintain the gain constant in a frequency band lower than the gain boosting frequency point and increase the gain in a frequency band higher than the gain boosting frequency point, testing and recording a temperature of the loudspeaker till the loudspeaker fails, and recording a temperature at the time of the failure; and determining a highest temperature that is tolerable by the loudspeaker before the loudspeaker fails.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04R Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
