Method and node for adjusting line interface rate
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Oct 9, 2015
filing date -
Apr 10, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

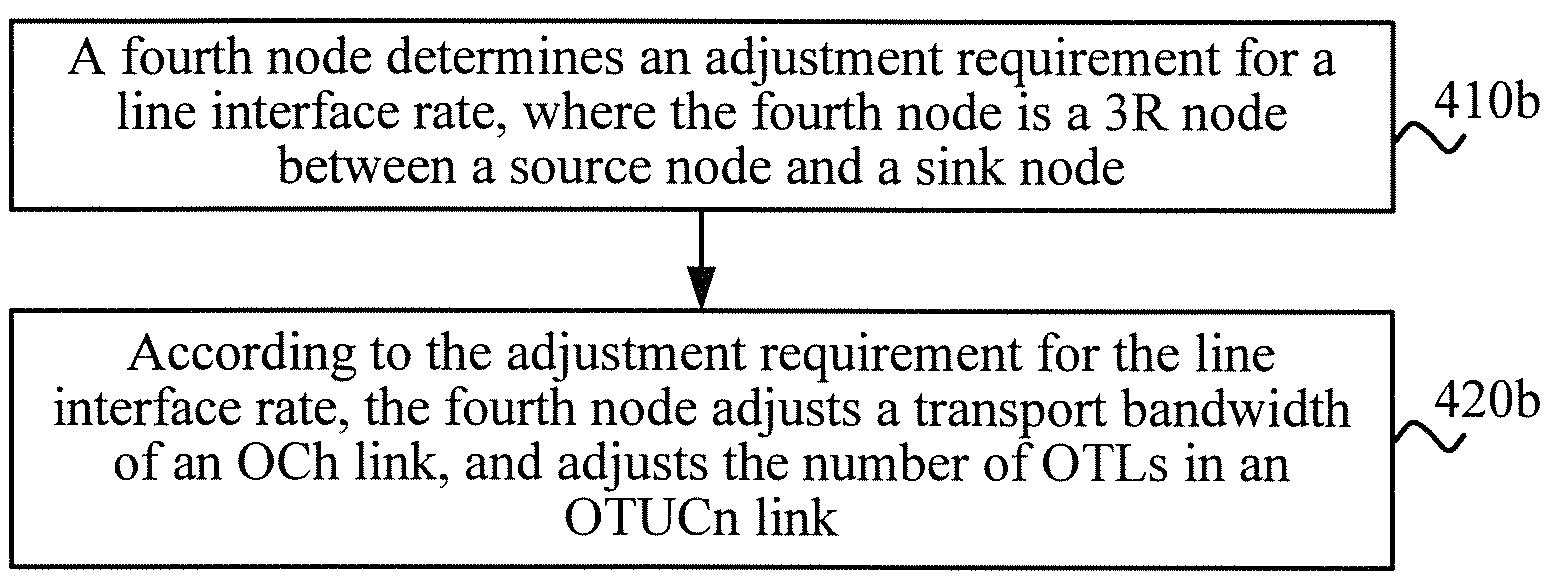

The present invention provides a method, which including: determining, by a first node, an adjustment requirement for a line interface rate; and according to the adjustment requirement for the line interface rate, adjusting, by the first node, a transport bandwidth of an optical channel (OCh) link, adjusting the number of optical channel transport lanes (OTLs) in an optical channel transport unit (OTUCn) link, and adjusting the number of optical channel data lanes (ODLs) in an optical channel data unit (ODUCn) link, where the OTL is in one-to-one correspondence with the ODL. In embodiments of the present invention, according to an adjustment requirement for a line interface rate, a transport bandwidth of an OCh link is adjusted, the number of OTLs in an OTUCn link is adjusted, and the number of ODLs in an ODUCn link is adjusted, so that the line interface rate can be dynamically adjusted.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H04L Class
- 33706 Applications Filed
- 25909 Patents Issued To-Date
- 76.87 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
