Solid-state imaging device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Jun 29, 2016
filing date -
Jan 22, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

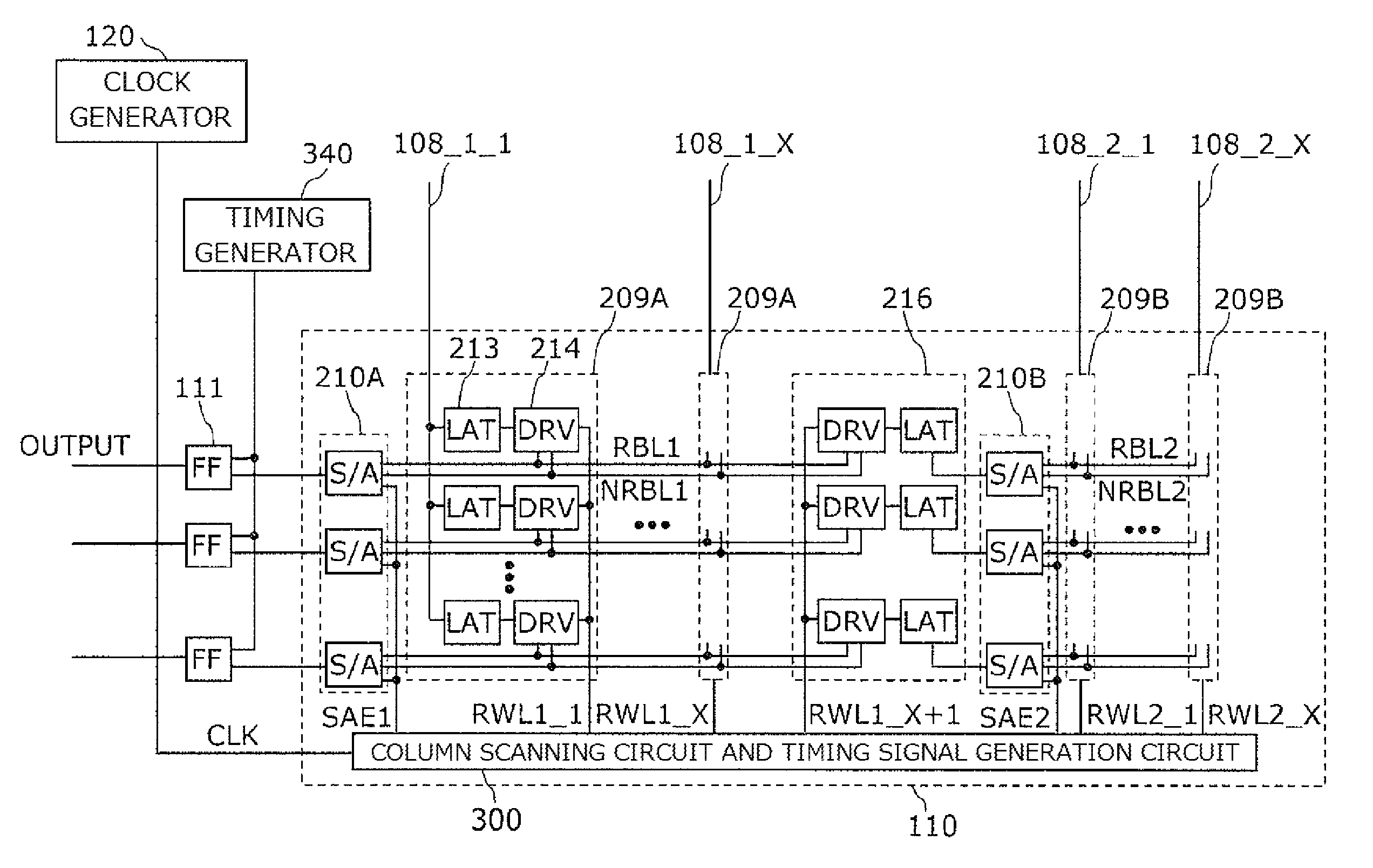

A solid-state imaging device includes a plurality of pixels arrayed in a matrix, a plurality of first latch circuits, a first read bit line, a plurality of first driver circuits, a first amplifier, a second latch circuit, a second driver circuit, and a column scanning circuit. Each of the plurality of first latch circuits holds first pixel data which is obtained from a pixel located on the corresponding unit column. Each of the plurality of first driver circuits outputs the first pixel data, which is held in a corresponding one of the first latch circuits, to the first read bit line. The first amplifier amplifies a voltage of the first read bit line to generate first data. The second latch circuit holds the first data. The column scanning circuit sequentially outputs a plurality of the first pixel data by sequentially selecting the plurality of first driver circuits and selecting the second driver circuit. The second driver circuit outputs the first data to a read bit line different from the first read bit line.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H04N Class
- 18761 Applications Filed
- 14708 Patents Issued To-Date
- 78.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
