Communication apparatus, time synchronization system, and time synchronization method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Oct 17, 2016
filing date -
Jul 27, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

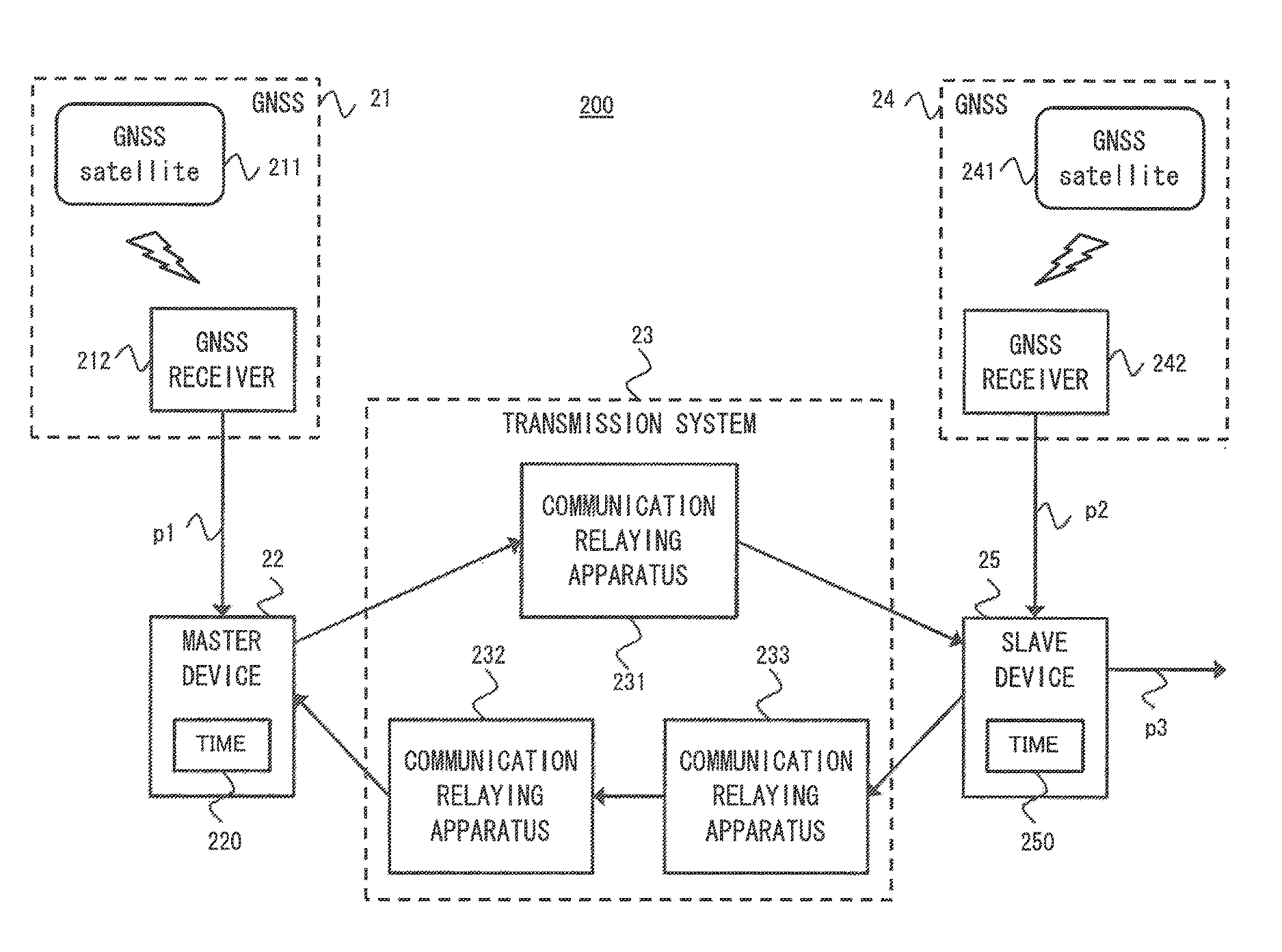

A communication apparatus (13) according to the present invention is provided with: a storage unit (131) that stored in advance difference information (1311), which is the difference between first time information (t1) and second time information (t2), said first time information (t1) being received from a synchronization source communication apparatus (11) as a time synchronization source connected to a transmission system (12) wherein transmission delay time is different depending on the direction of transmission, and said second time information (t2) obtained from a time synchronization origin (14) other than the transmission system (12); and a time synchronization means (132) that carries out, when the second time information (t2) cannot be obtained from the time synchronization origin (14), time synchronization with the synchronization source communication apparatus (11) using the difference information (1311) read out from the storage unit (131).
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| WO | A1 | WO2014016993 | Apr 01, 2013 |
| US | B2 | US9258106 | Apr 01, 2013 |
| EP | A1 | EP2879322 | Apr 01, 2013 |
| IN | A | IN2015DN00190 | Jan 08, 2015 |
| US | A1 | US20160119112 | Jan 04, 2016 |
International Classification(s)
- 2016 Application Filing Year
- H04L Class
- 37326 Applications Filed
- 27972 Patents Issued To-Date
- 74.94 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
