Envelope tracking power amplifying apparatus and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Sep 20, 2016
filing date -
Mar 11, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

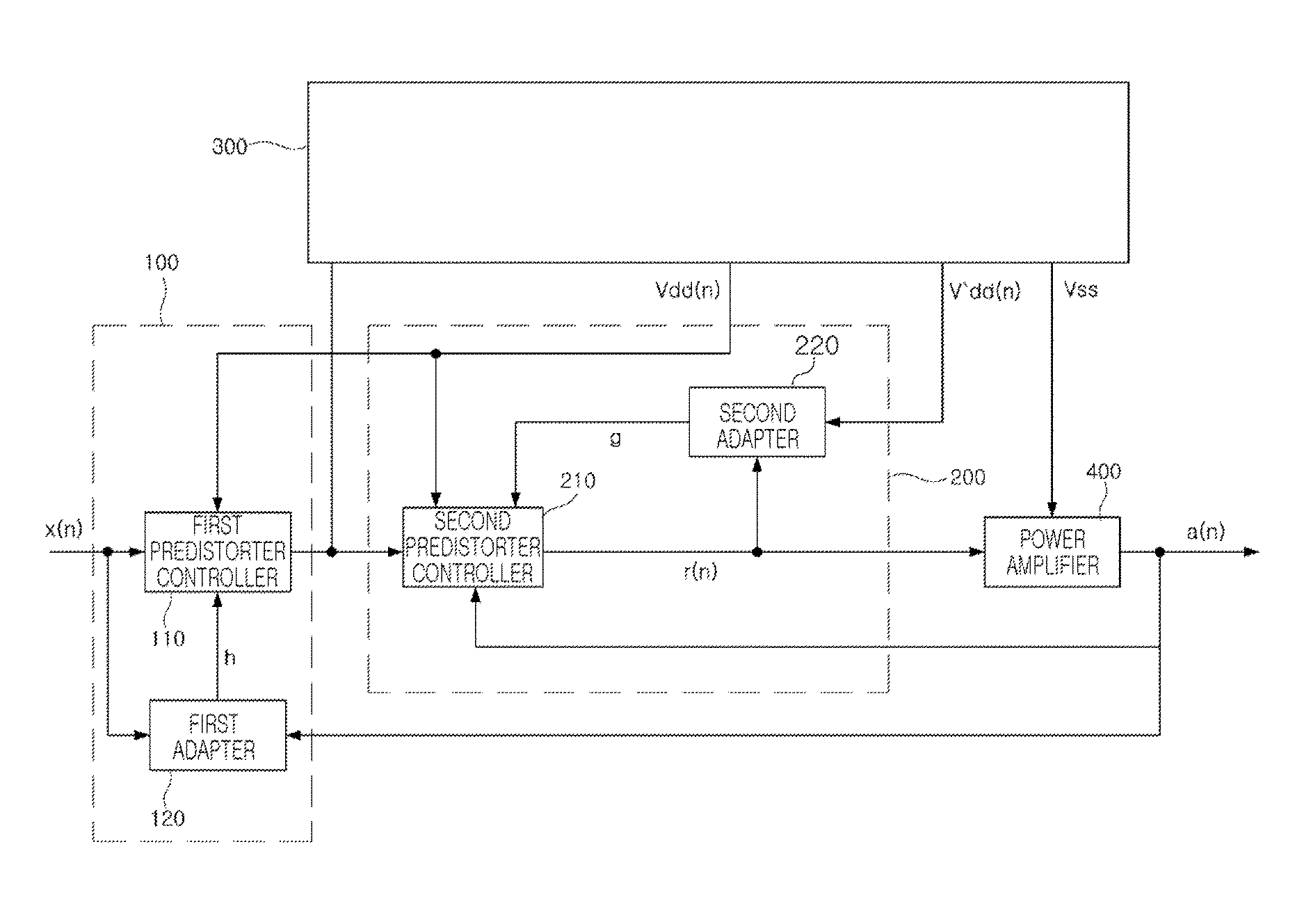

An apparatus includes a first predistorter configured to calculate a first predistortion parameter and configured to distort an input signal using the first predistortion parameter to output a first distortion signal, a second predistorter configured to calculate a second predistortion parameter and configured to distort the first distortion signal using the second predistortion parameter to output a second distortion signal, a power supply configured to receive the first distortion signal to generate a first envelope signal, and configured to limit a bandwidth of the first envelope signal to obtain a second envelope signal to supply a source voltage, and a power amplifier configured to receive the source voltage and to output an output signal obtained by amplifying the second distortion signal.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H03F Class
- 1076 Applications Filed
- 936 Patents Issued To-Date
- 86.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H03F Class
- 20.80 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
