Robust single-phase DC/AC inverter for highly varying DC voltages
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Oct 9, 2015
filing date -
Oct 10, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

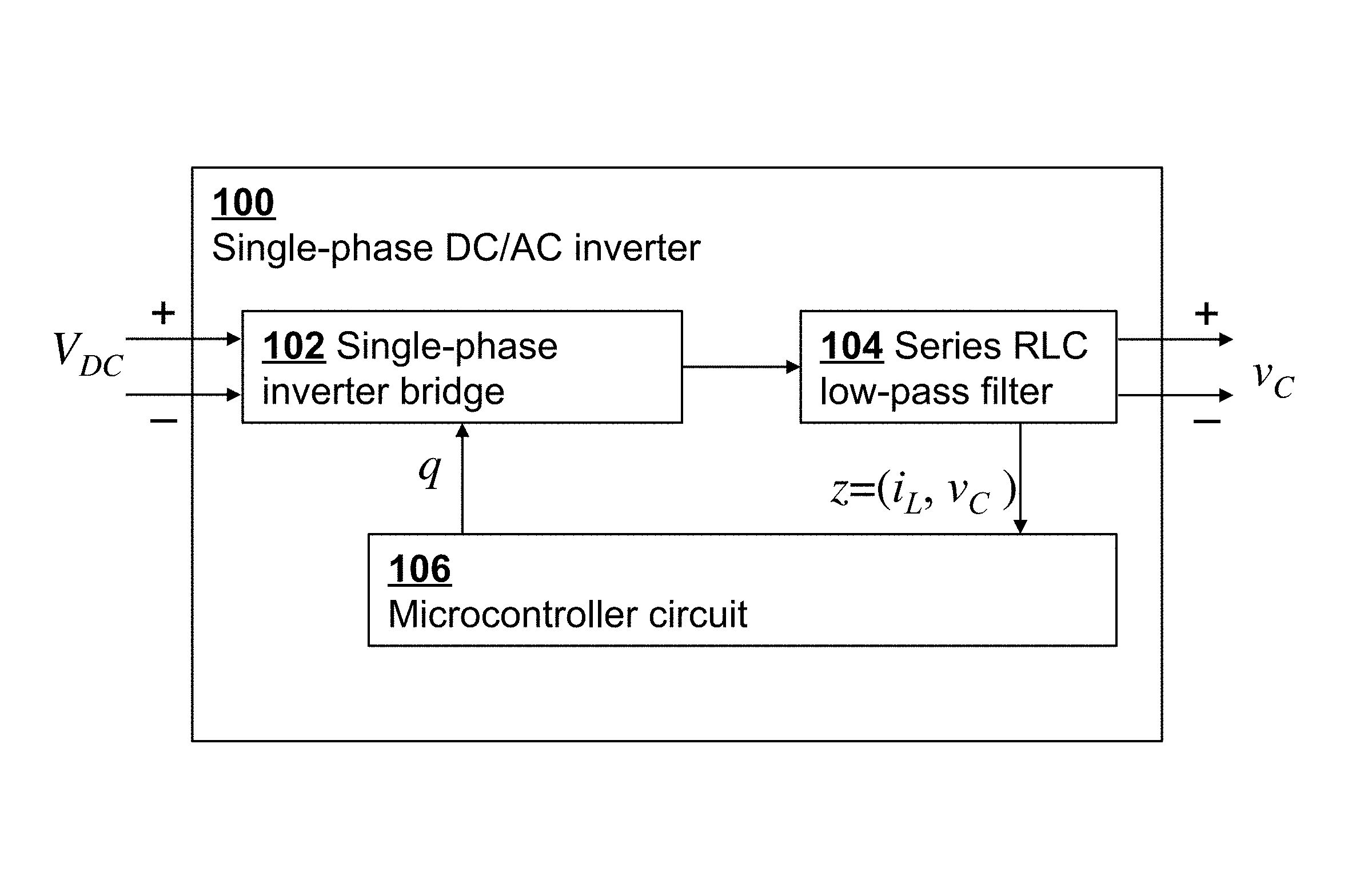

A single-phase DC/AC inverter has a single-phase inverter bridge with binary switches connected to an RLC low-pass filter. Digital control logic in a control circuit (or in a microcontroller) determines and controls a logic state q determining the position of the switches in the inverter bridge from sensed iL, vC values from the RLC filter. The control logic selects one of multiple possible logic states q based on whether the sensed iL, vC values belongs one of multiple boundary regions of a tracking band in an iL, vC state space.
