Stator winding pattern for hairpin drive motor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Sep 30, 2015
filing date -
Dec 3, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

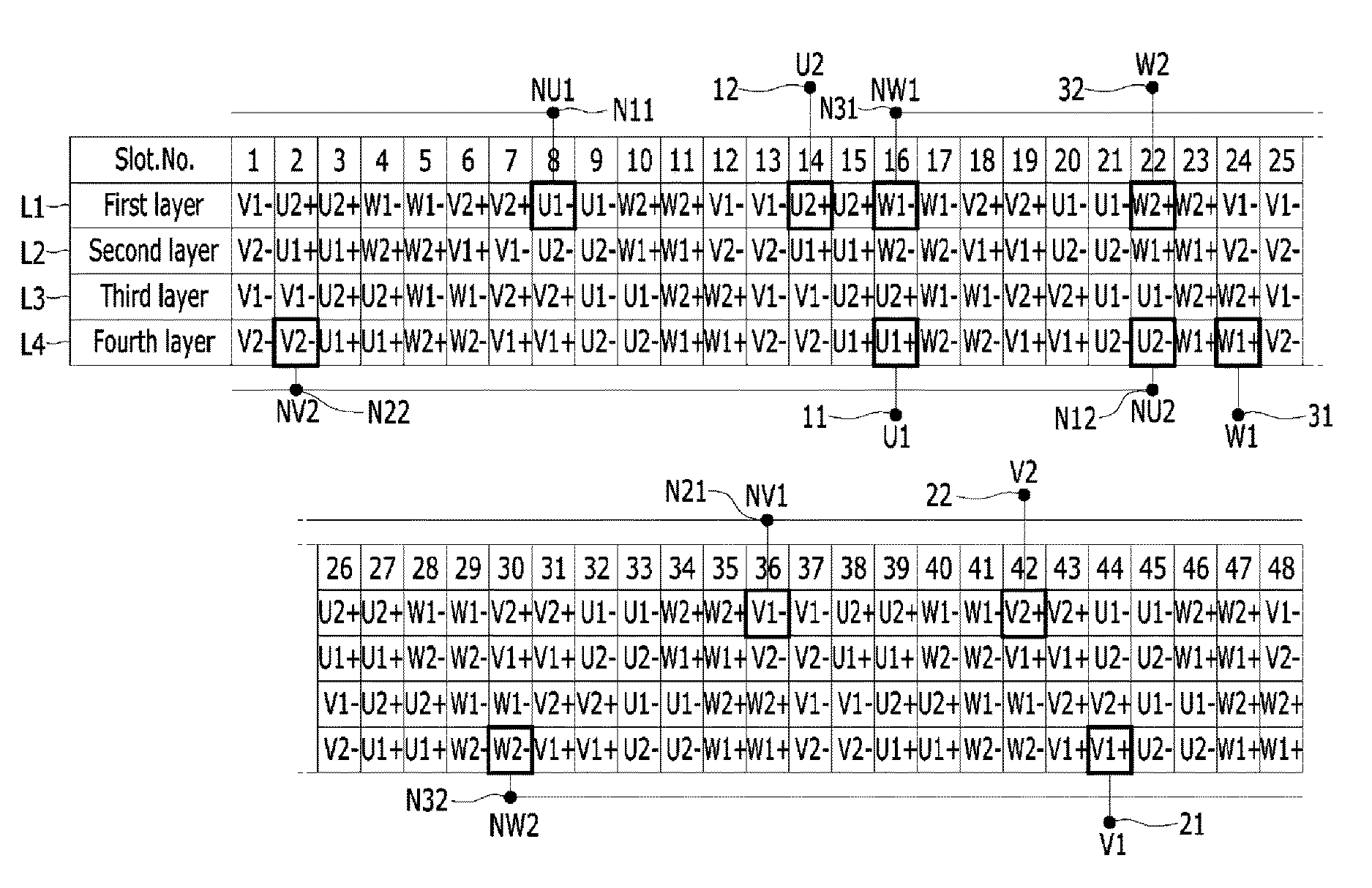

A stator winding pattern of a hairpin drive motor includes a stator with 8 poles and 48 slots of a distribution winding where a hairpintype of flat coil is inserted into a slot of a stator core and configured by a full pitch winding implementing 6 pitches of 3 phases and 2 in parallel, the pitch being a distance between adjacent slots, characterized in that: first to fourth layers are formed in the slot of the stator core in a radial direction of the stator core; and when a first layer or a fourth layer is set as a draw out part of one phase in an optional reference slot, a first draw out part of a different phase is formed in a draw out slot having 28 pitches in a slot forward direction in a same layer based on the reference slot, and a second draw out part of the different phase is formed in a draw out slot having 20 pitches in a slot reverse direction in the same layer based on the reference slot.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H02K Class
- 2569 Applications Filed
- 1988 Patents Issued To-Date
- 77.39 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H02K Class
- 23.38 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
