Stator core for rotating electric machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Jun 10, 2014
filing date -
Jun 14, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

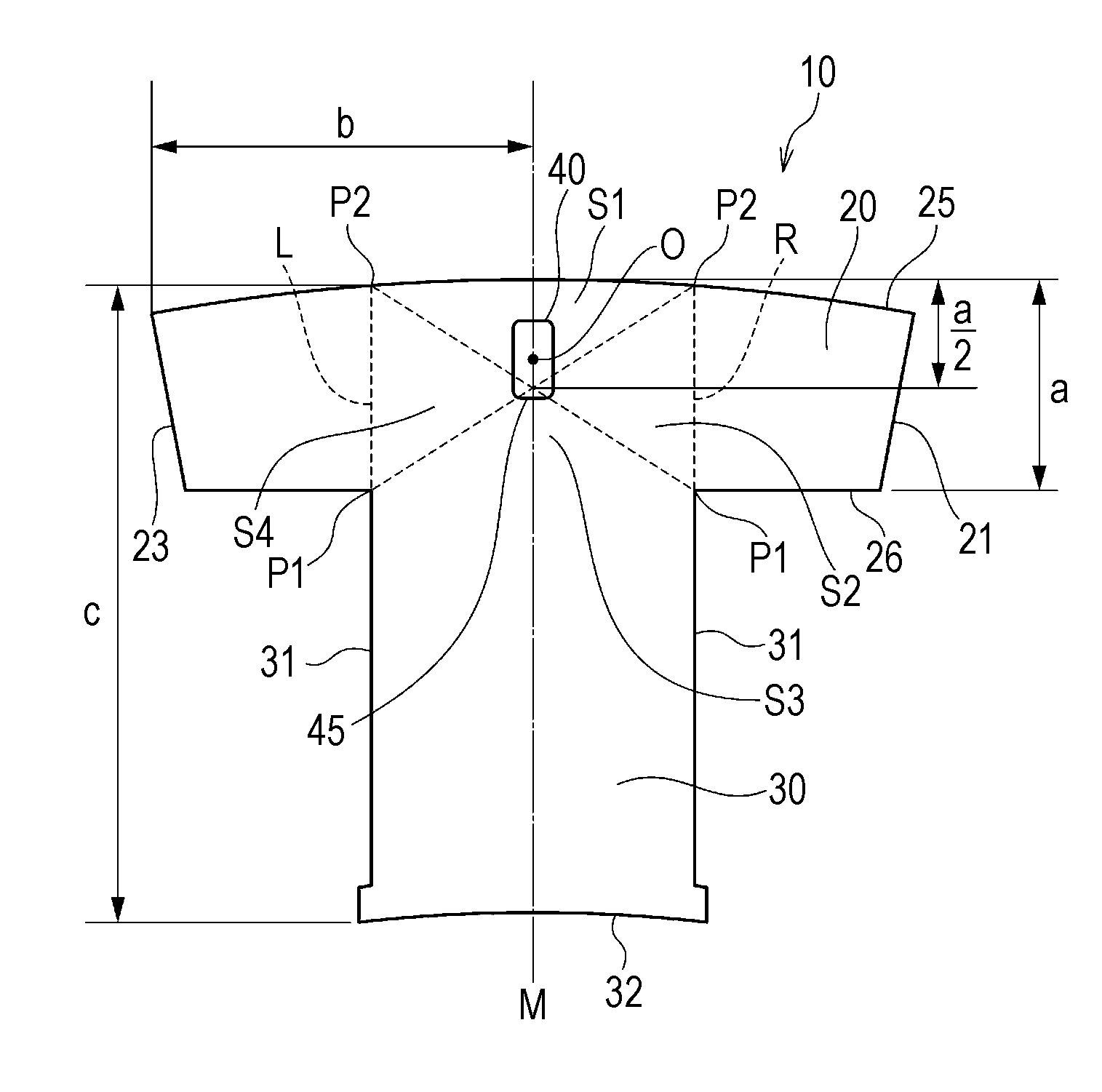

A stator core for a rotating electric machine includes a plurality of split cores. Each of the plurality of split cores includes a back yoke, a tooth, and a single caulking portion. When each of the plurality of split cores is seen in an axial direction, two inner circumferential-side intersections and two outer circumferential-side intersections are defined, both circumferential-end surfaces of the tooth intersect an inner circumferential surface of the back yoke at the two inner circumferential-side intersections, virtual lines drawn by extending both the circumferential-end surfaces of the tooth intersect an outer circumferential surface of the back yoke at the two outer circumferential-side intersections, a central position of the caulking portion is disposed in an opposing angular region on a radially outer side out of four opposing angular regions defined by lines diagonally connecting the two inner circumferential-side intersections to the respective two outer circumferential-side intersections.
