Electrical machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Sep 12, 2014
filing date -
Mar 13, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

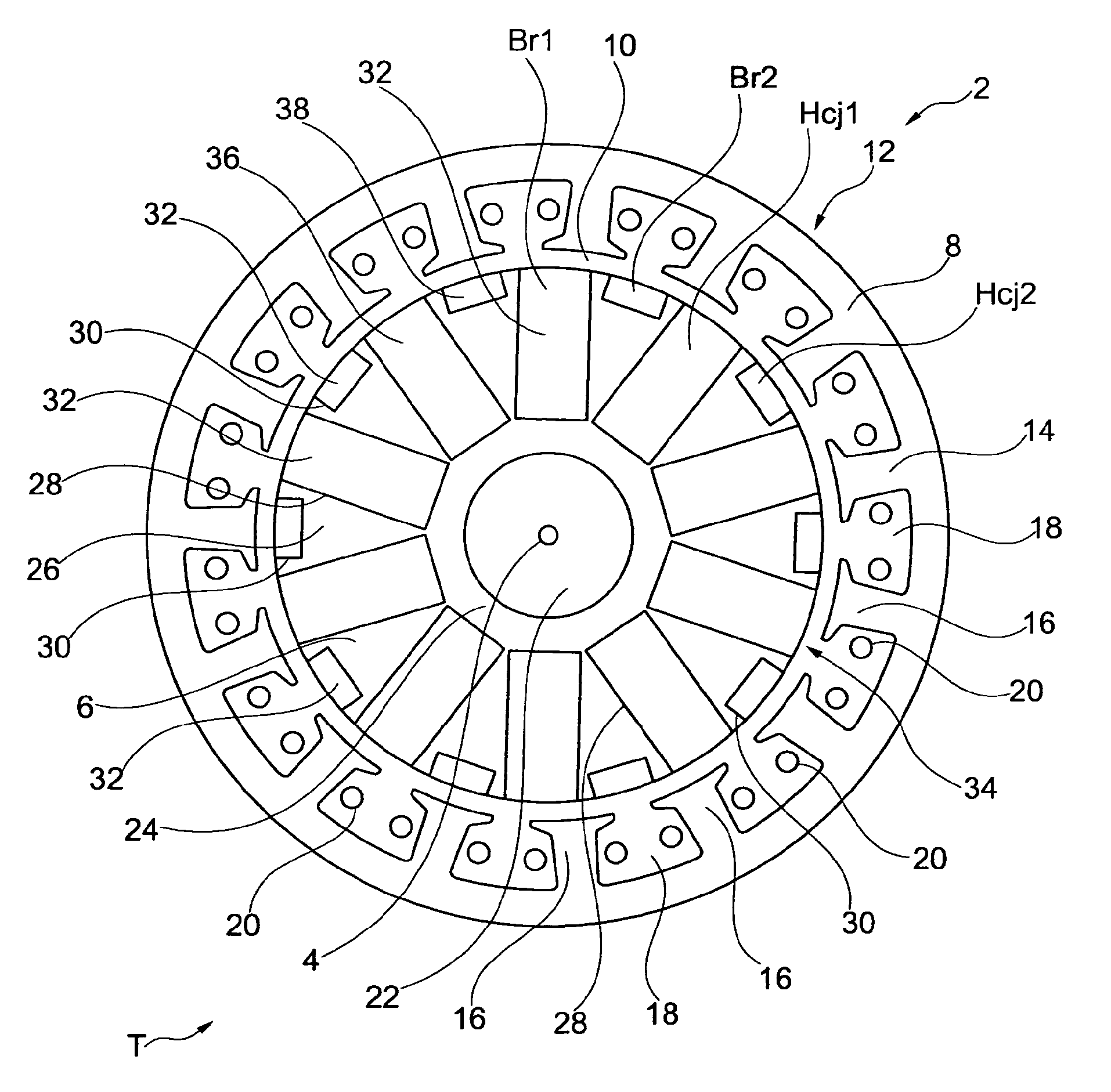

An electrical machine, in particular an electric motor of a motor vehicle, having a stator and having a rotor which has a rotation axis. An electrical machine can be a brushless electric motor (DC motor) or a synchronous machine, but also a generator. The stator or the rotor has an electromagnet structure, and the other has a permanent-magnet structure which comprises a first quantity of permanent magnets and a second quantity of permanent magnets. At at least the operating temperature (T), the magnetic coercive field strength (Hcji) of the first quantity is greater than the magnetic coercive field strength (Hcj2) of the second quantity. Further, two methods for producing hybrid magnets are provided.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H02K Class
- 2148 Applications Filed
- 1788 Patents Issued To-Date
- 83.25 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02K Class
- 23.38 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
