Driving light emitting elements with reduced voltage drivers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Jan 30, 2017
filing date -
Jan 30, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

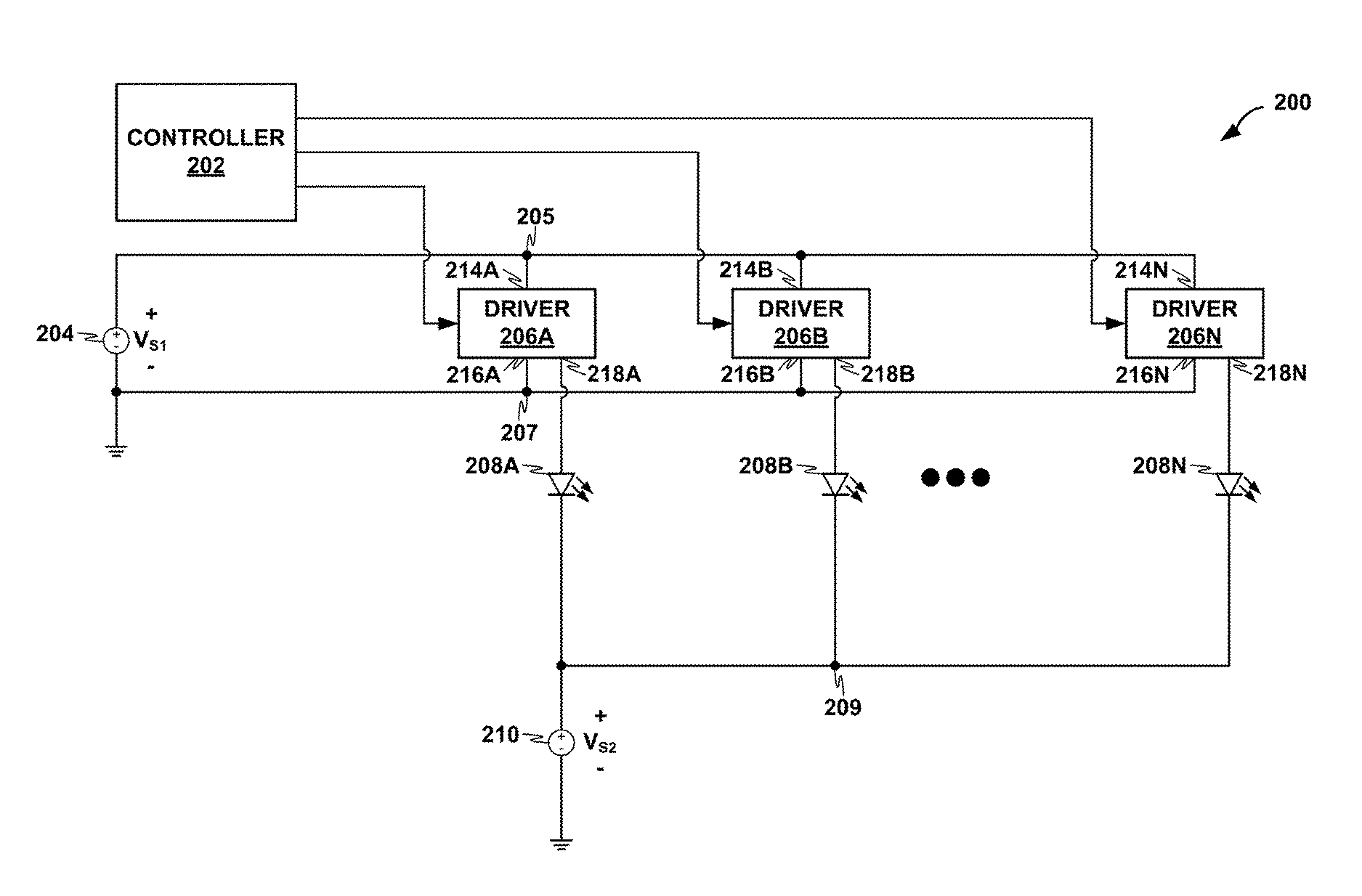

In one example, a method includes outputting, by a power supply and across a supply node and a ground node, a supply power signal; and selectively outputting, by a driver, a power signal to a second terminal of a light emitting element that has a first terminal and the second terminal, wherein the first terminal of the light emitting element is coupled to a load node, wherein a supply terminal of the driver is coupled to the supply node, wherein a ground terminal driver is coupled to the ground node, and wherein a difference between a potential of the supply node and a potential of the ground node is less than an activation voltage of the light emitting element.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H05B Class
- 3969 Applications Filed
- 2909 Patents Issued To-Date
- 73.30 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- H05B Class
- 31.12 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
