Electronic device antenna with embedded parasitic arm
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Aug 18, 2015
filing date -
Aug 18, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

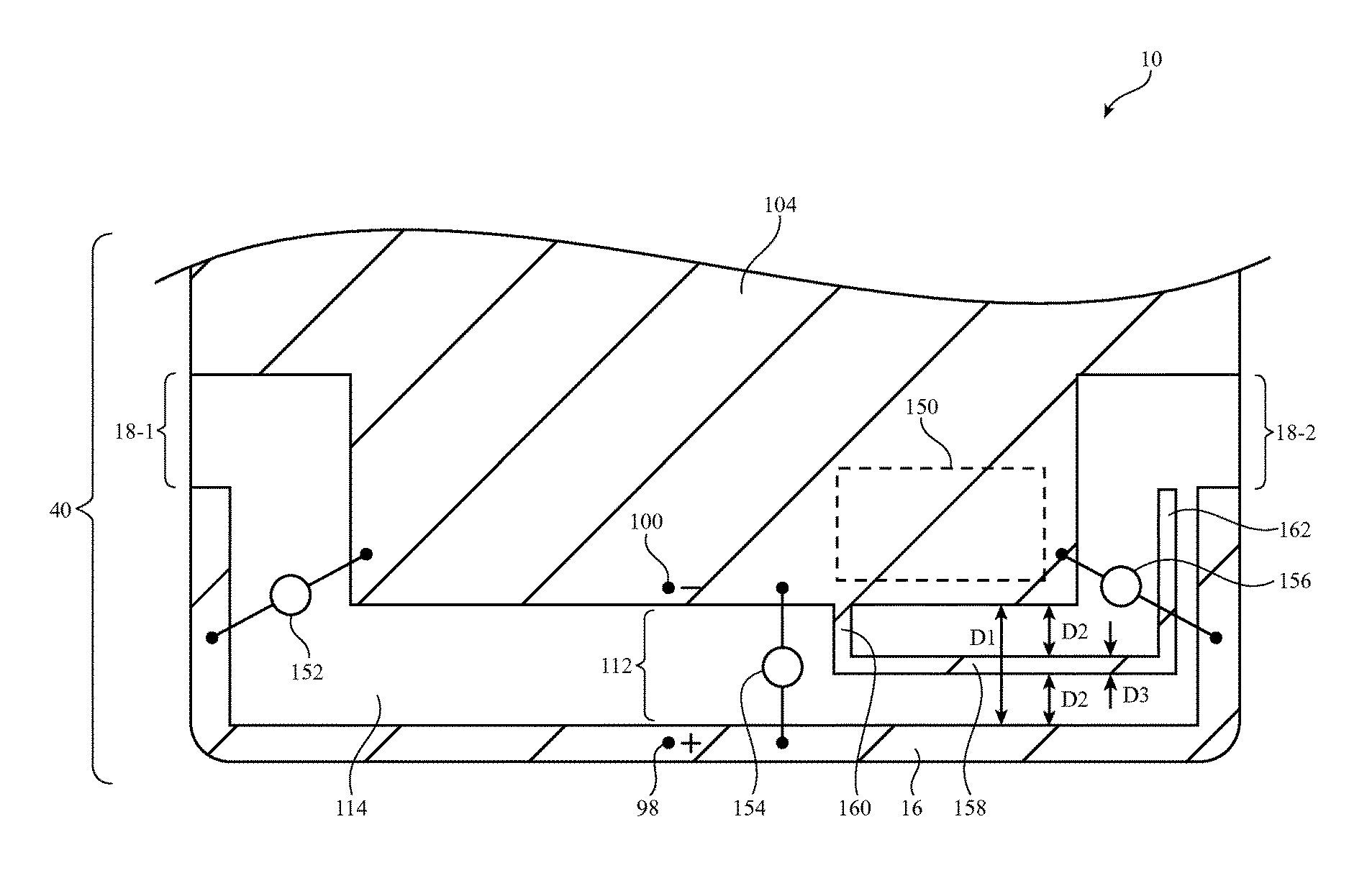

An electronic device may have wireless circuitry with antennas. An antenna resonating element arm for an antenna may be formed from peripheral conductive structures running along the edges of a device housing. The peripheral conductive structures may form housing sidewalls. A slot may be machined into a metal housing that separates the housing sidewalls from a planar rear housing portion that forms a ground for an antenna. The slot may be filled with plastic filler. A parasitic antenna resonating element arm that supports an antenna resonance at high band frequencies may be embedded within the plastic filler. The parasitic antenna resonating element may be formed from a portion of the planar rear housing portion.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 10 Citation Count
- H01Q Class
- 17.89 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
