Mobile wireless communications device with split antenna feed network and related methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Aug 30, 2013
filing date -
Aug 30, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

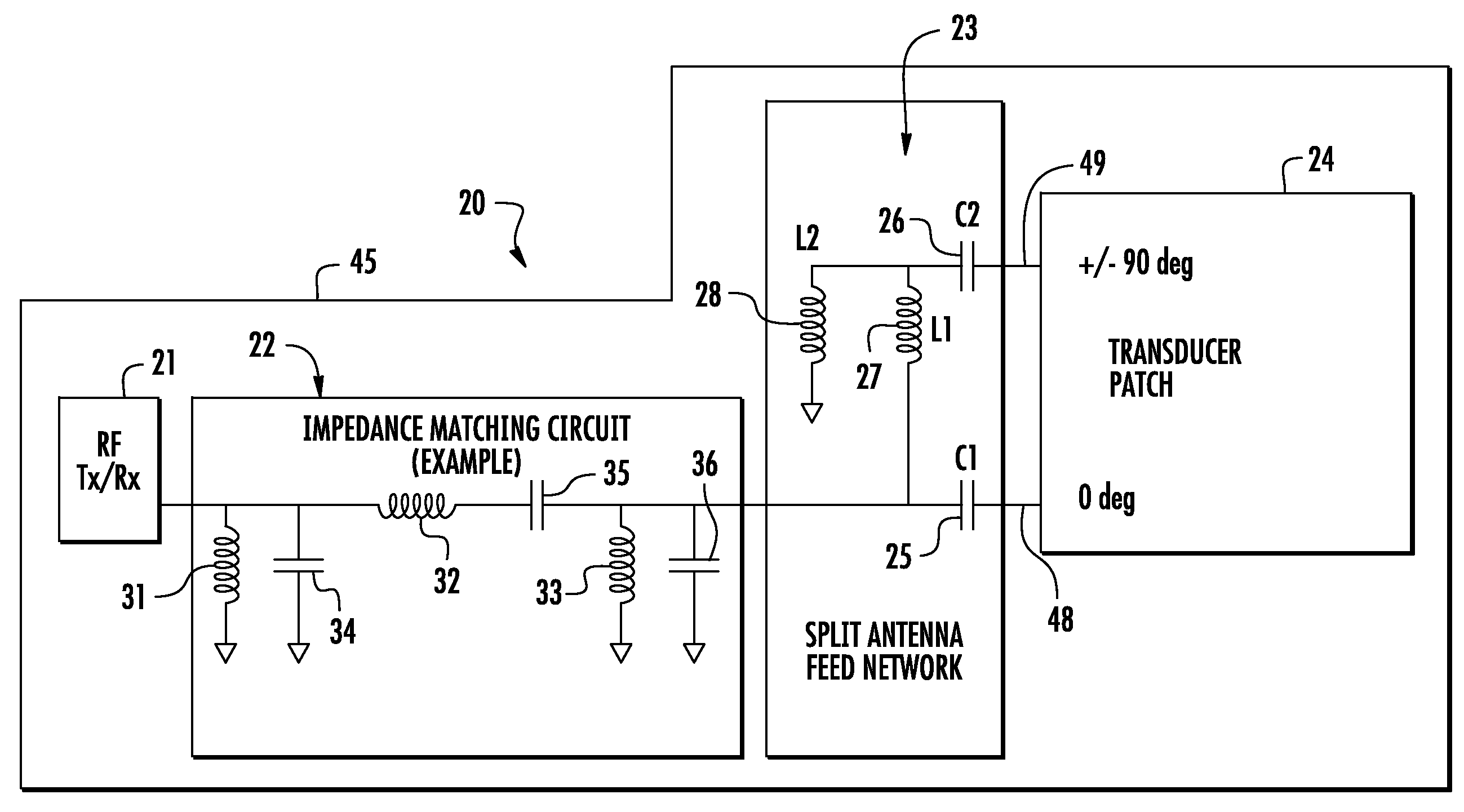

A device may include a housing, a wireless transceiver carried by the housing, and an antenna element carried by the housing and having first and second feeds, and a split antenna feed network carried by the housing and providing a phase shift between the first and second feeds. The split antenna feed network may include a first capacitor having a first terminal coupled to the first feed and a second terminal coupled to the wireless transceiver, a second capacitor having a first terminal coupled to the second feed and a second terminal, a first inductor having a first terminal coupled to the second terminal of the first capacitor and a second terminal coupled to the second terminal of the second capacitor, and a second inductor having a first terminal coupled to the second terminal of the second capacitor and a second terminal coupled to a voltage reference.
