Method for performing enrichment of an electrode of an electrochemical device with ionic species
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Nov 24, 2015
filing date -
Nov 24, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

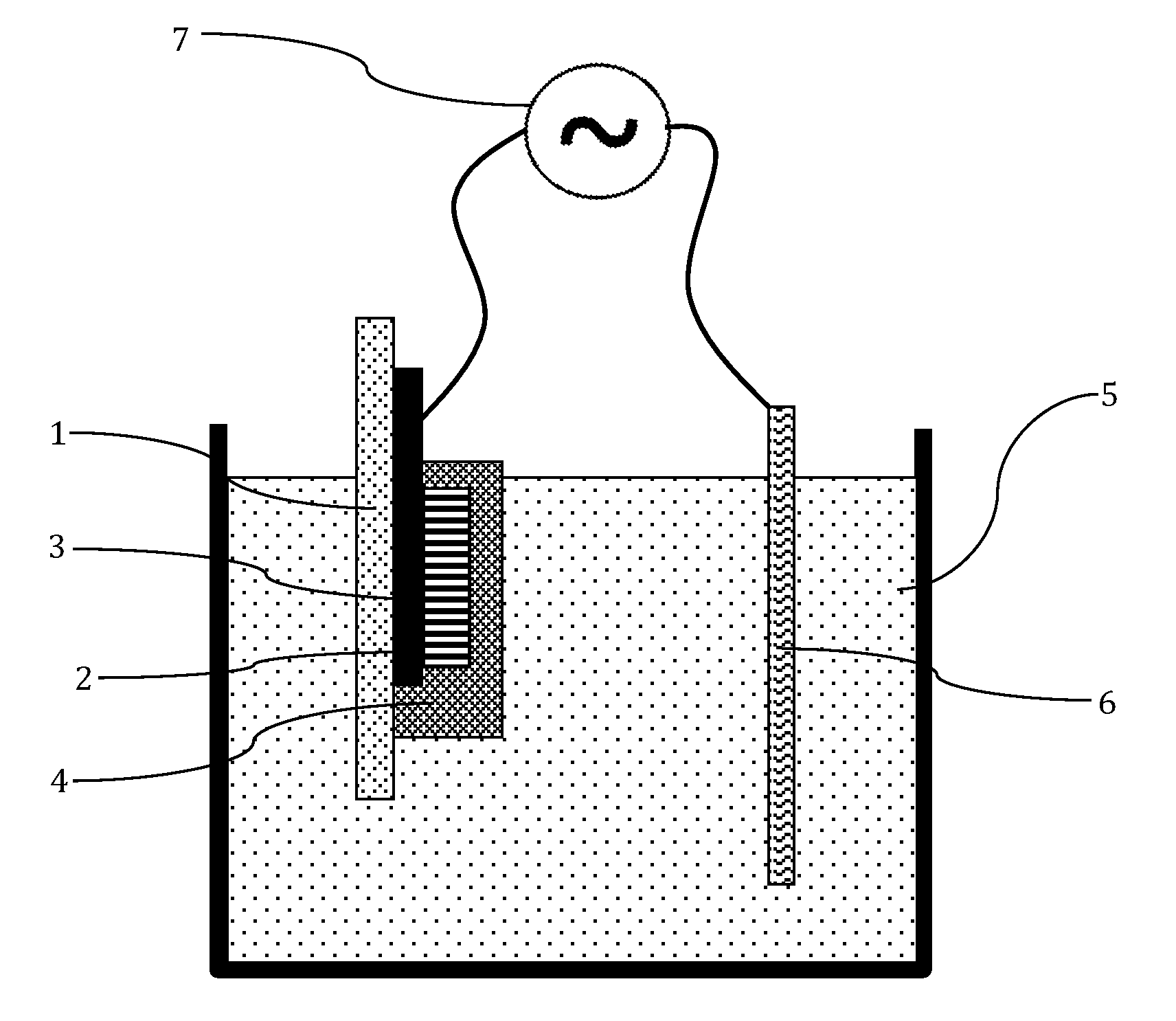

Method for an electrochemical device electrode enrichment, with ionic-species, including steps of: providing a substrate with at least one stack including: a first current-collector covering at least part of the substrate, first electrode covering at least part of the first current-collector, the first electrode being in electric contact with the first current-collector, protective layer totally covering the first electrode and at least part of the first current-collector, the protective layer being electrically insulating and ionically conducting; immersing in an electrolytic solution: the substrate provided with stack, counter-electrode made from conducting material, the electrolytic solution including at least one ionic-species salt and/or counter-electrode including ionic-species, applying electric voltage or current, with voltage or current generator, between first current-collector and counter-electrode making the ionic-species migrate to the first electrode and enrich the first electrode with ionic-species, depositing a second electrode on the protective layer after enrichment of the first electrode with ionic-species.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H01M Class
- 5536 Applications Filed
- 4391 Patents Issued To-Date
- 79.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01M Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
