Image sensor having vertical transfer gate and method for fabricating the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Sep 15, 2015
filing date -
Jun 9, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

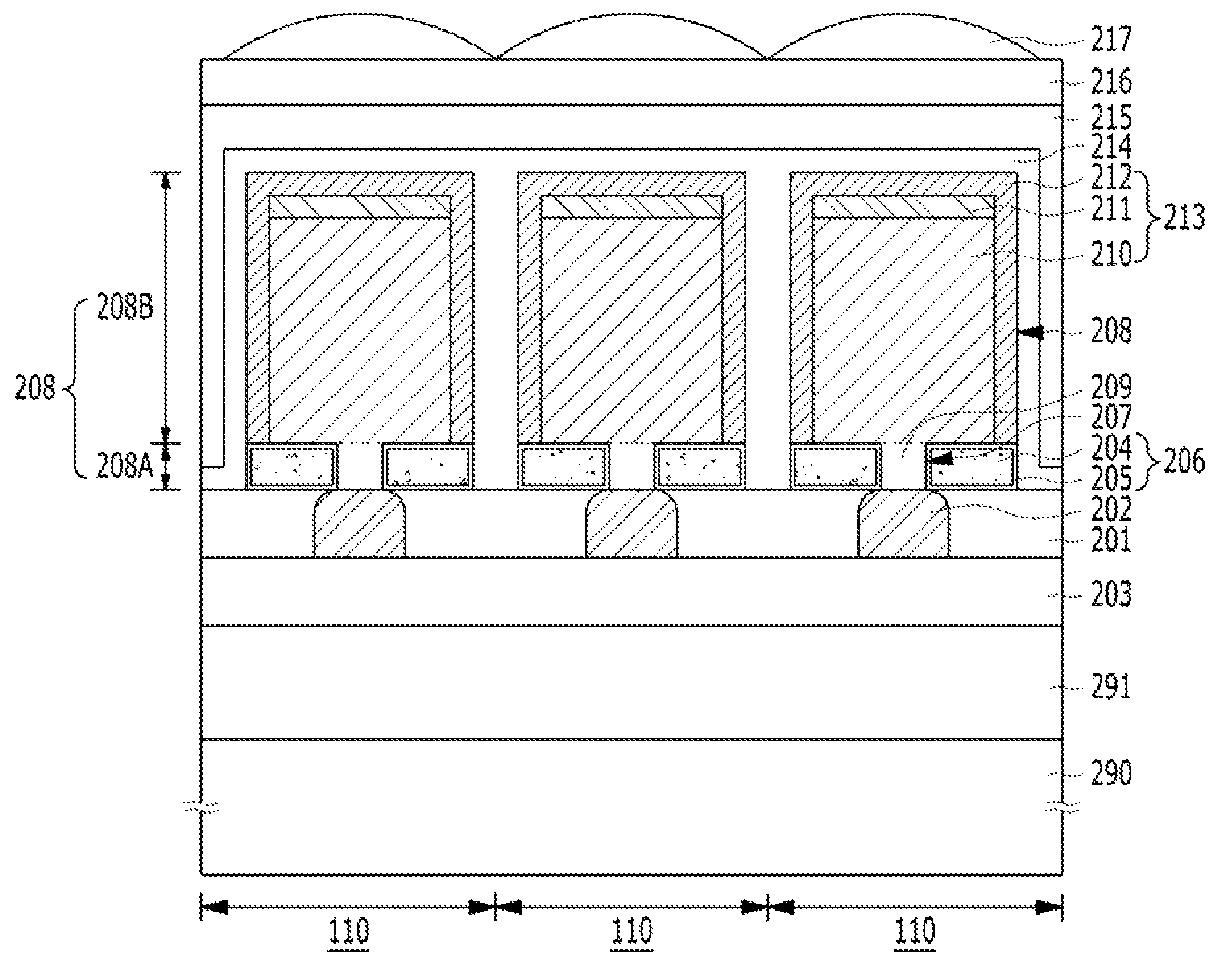

The present disclosure provides an image sensor. An image sensor may include: a transfer gate formed over a first substrate, and having a through-hole; a column-shaped epitaxial body having a first portion filled in the through-hole and a second portion formed over the transfer gate; a photoelectric conversion element formed in the second portion of the epitaxial body; and a floating diffusion region formed in the first substrate, and contacting the first portion of the epitaxial body.
