Thin-film transistor array substrate and manufacturing method thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
May 25, 2015
filing date -
Apr 27, 2015
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

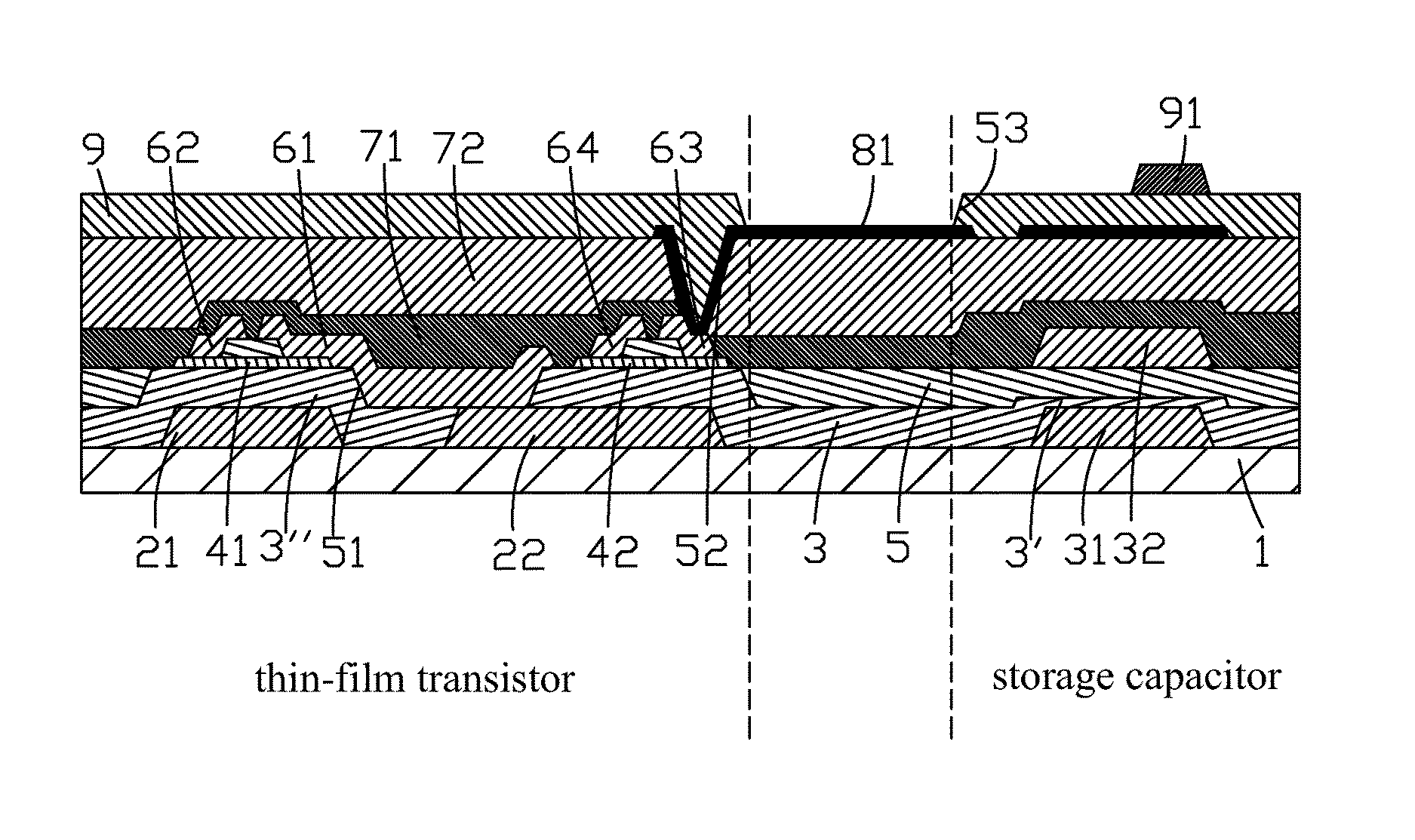

The present invention provides a thin-film transistor array substrate and a manufacturing method thereof. In the thin-film transistor array substrate of the present invention, the portion of the gate insulation layer interposed between two electrode plates of the storage capacitor is smaller than that of the remaining portion of the gate insulation layer so that the thickness of the insulation layer of the storage capacitor is reduced and the area of the opposite surfaces of the capacitor can be made smaller and an increased aperture ratio can be achieved. The manufacturing method of a thin-film transistor array substrate of the present invention provides uses a half tone masking operation and applies two etching operations to have a portion of a gate insulation layer that is located on a first electrode plate of a storage capacitor partially etched so as to reduce the thickness thereof, thereby reducing the thickness of the internal insulation layer of the storage capacitor, whereby the area of the opposite surfaces of the capacitor electrode plates can be reduced under the condition of achieving the same capacitance and thus the aperture ratio is increased.
