Method for manufacturing semiconductor device

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9876022
SERIAL NO

15449689

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

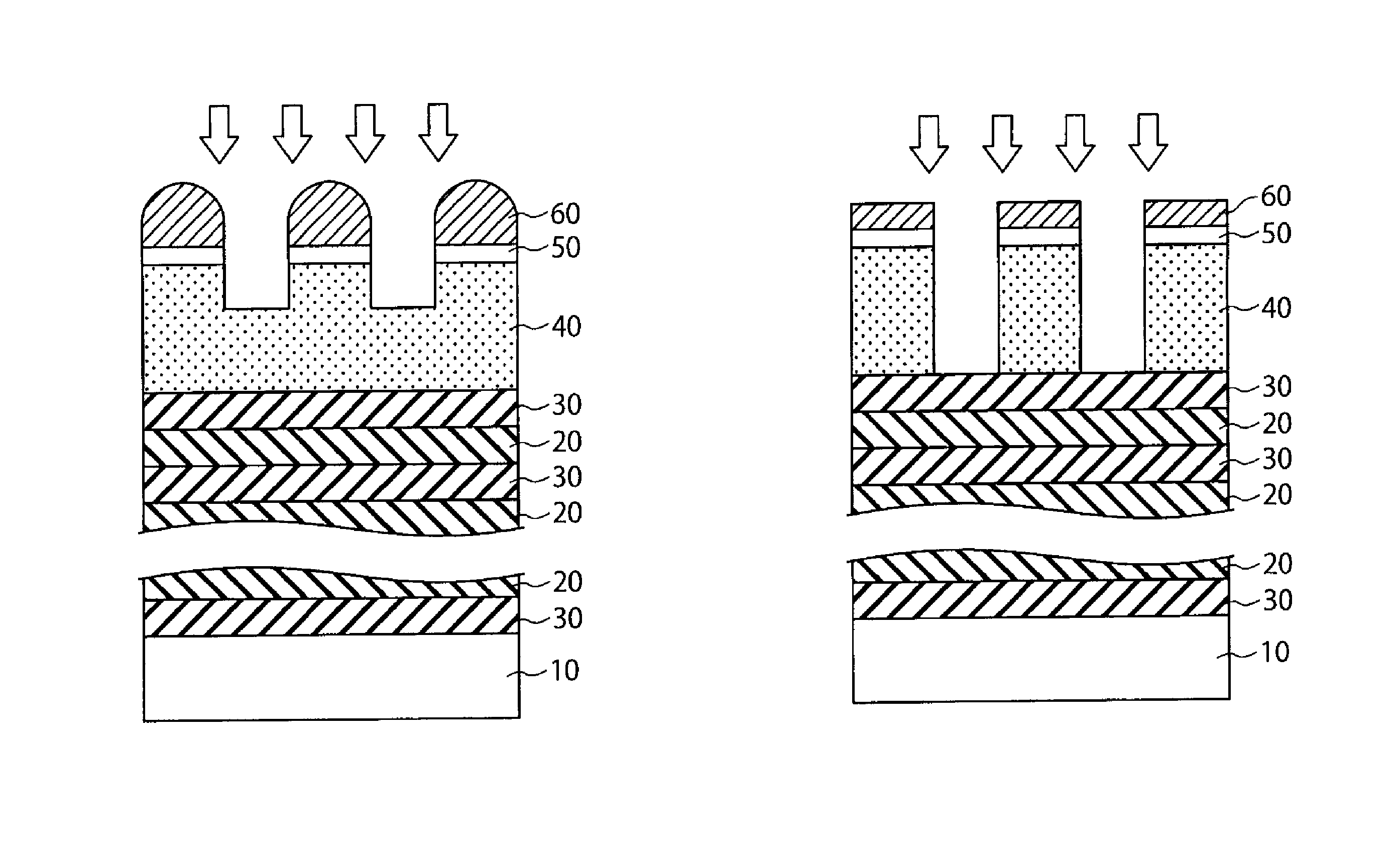

A method for manufacturing a semiconductor device includes forming a resist film on a film to be processed. An upper portion of the film to be processed is processed using the resist film as a first mask. Tungsten or a tungsten compound is selectively formed on the resist film. A lower portion of the film to be processed is processed with a reducing gas using the tungsten or the tungsten compound as a second mask.
