Semiconductor device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Sep 6, 2016
filing date -
Nov 20, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Calculated Rating
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|

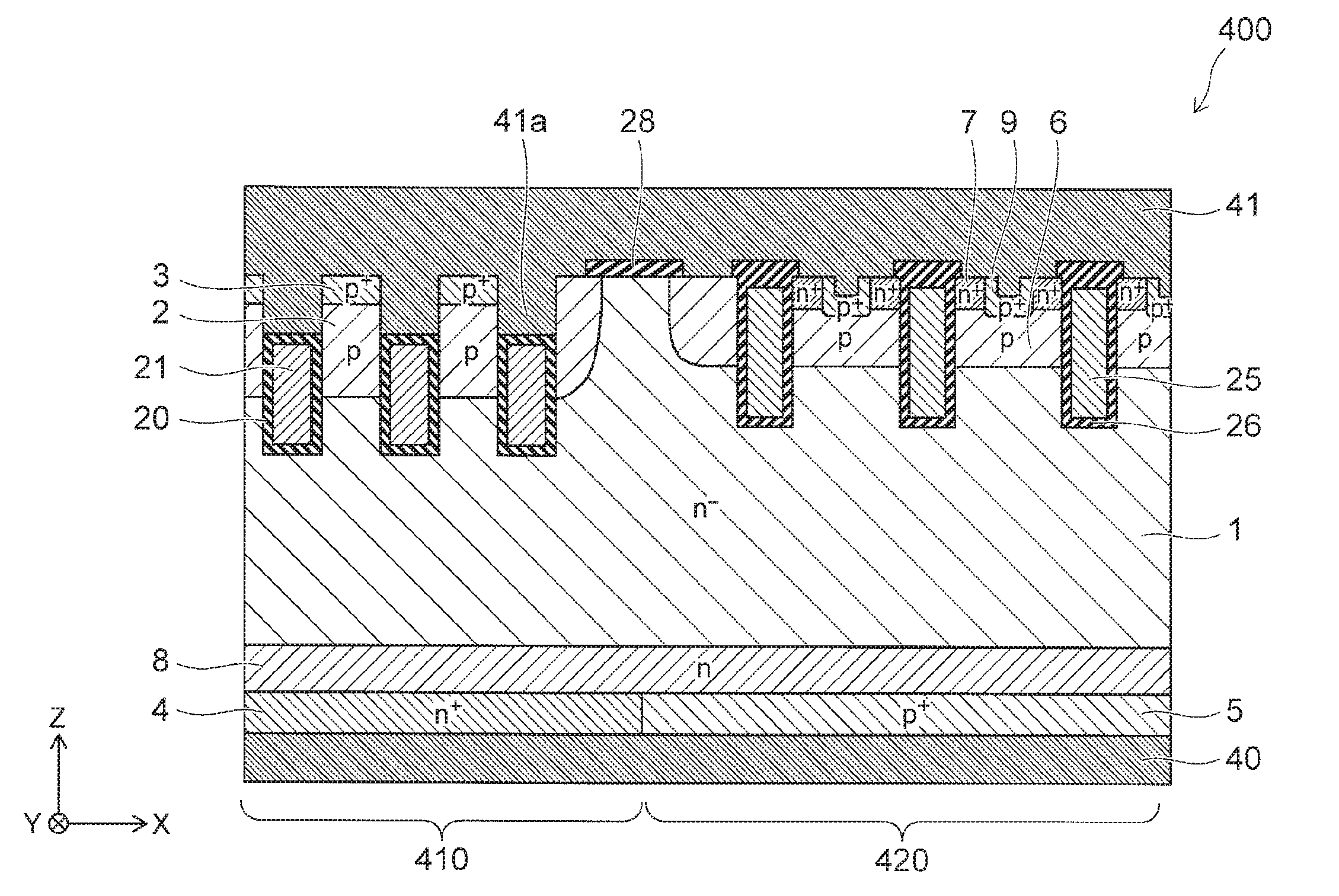

Abstract
A semiconductor device comprising:
- a first semiconductor region of a first conductivity type;a second semiconductor region of a second conductivity type provided on the first semiconductor region;an insulating portion provided on the first semiconductor region;a third semiconductor region of the second conductivity type provided on the second semiconductor region and having a higher carrier concentration of the second conductivity type than that of the second semiconductor region; anda first electrode provided on the insulating portion and the third semiconductor region, the first electrode having a portion which is aligned with the second semiconductor region in a second direction perpendicular to a first direction being from the first semiconductor region to the second semiconductor region, and the first electrode being in contact with the second semiconductor region and the third semiconductor region.
First Claim
Other Claims data not available
Family
+
−
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP6694375 | Nov 17, 2016 |
International Classification(s)
- 2016 Application Filing Year
- H01L Class
- 27971 Applications Filed
- 23507 Patents Issued To-Date
- 84.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H01L Class
- 23.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
