Semiconductor component including a short-circuit structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Grant Date -
Jun 2, 2016
app pub date -
Feb 5, 2016
filing date -
Nov 30, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

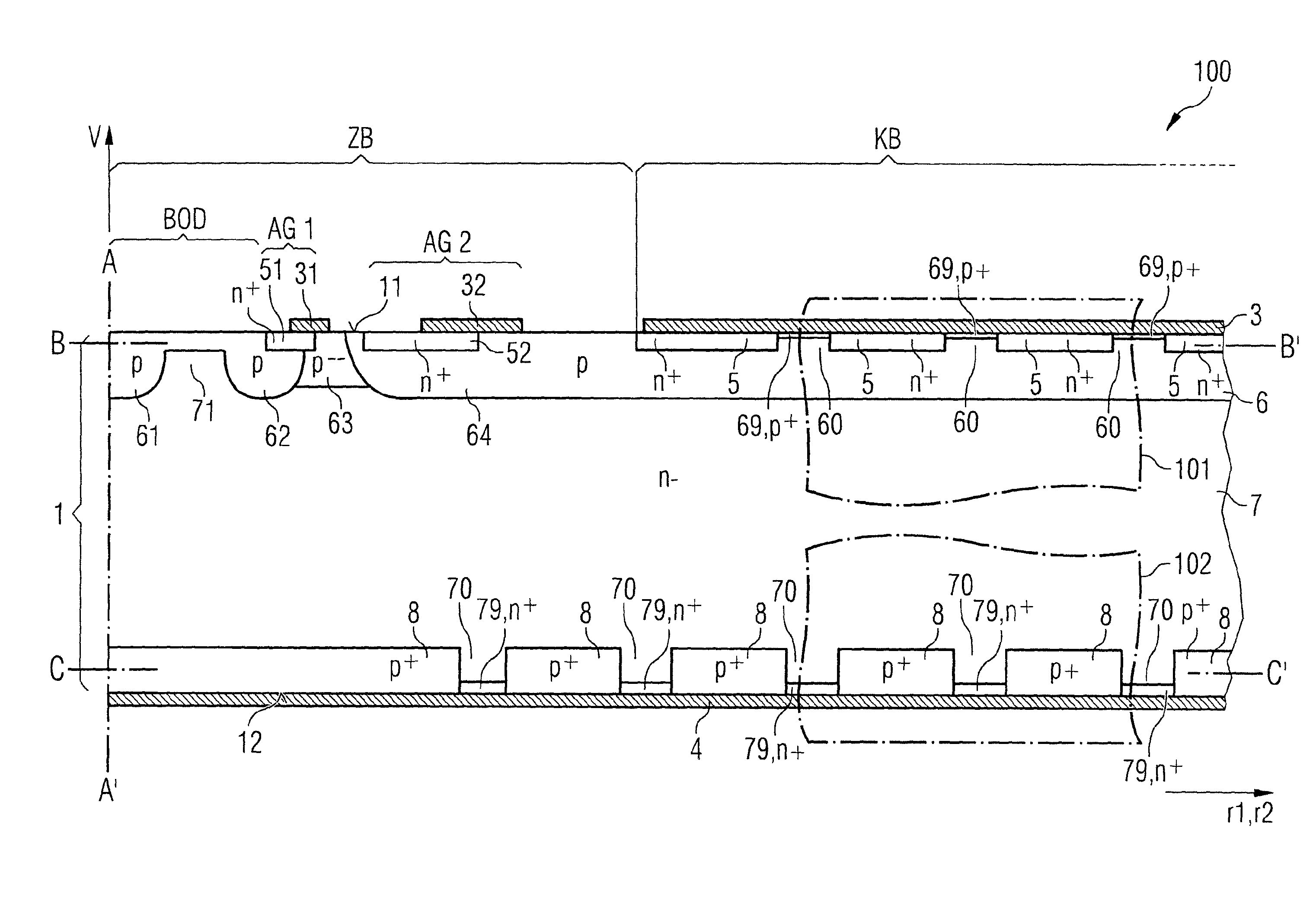

A semiconductor component including a short-circuit structure. One embodiment provides a semiconductor component having a semiconductor body composed of doped semiconductor material. The semiconductor body includes a first zone of a first conduction type and a second zone of a second conduction type, complementary to the first conduction type, the second zone adjoining the first zone. The first zone and the second zone are coupled to an electrically highly conductive layer. A connection zone of the second conduction type is arranged between the second zone and the electrically highly conductive layer.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2016 Application Filing Year
- H01L Class
- 27971 Applications Filed
- 23507 Patents Issued To-Date
- 84.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
