Semiconductor device including electrostatic discharge circuit and operation method thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Apr 24, 2015
filing date -
May 14, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

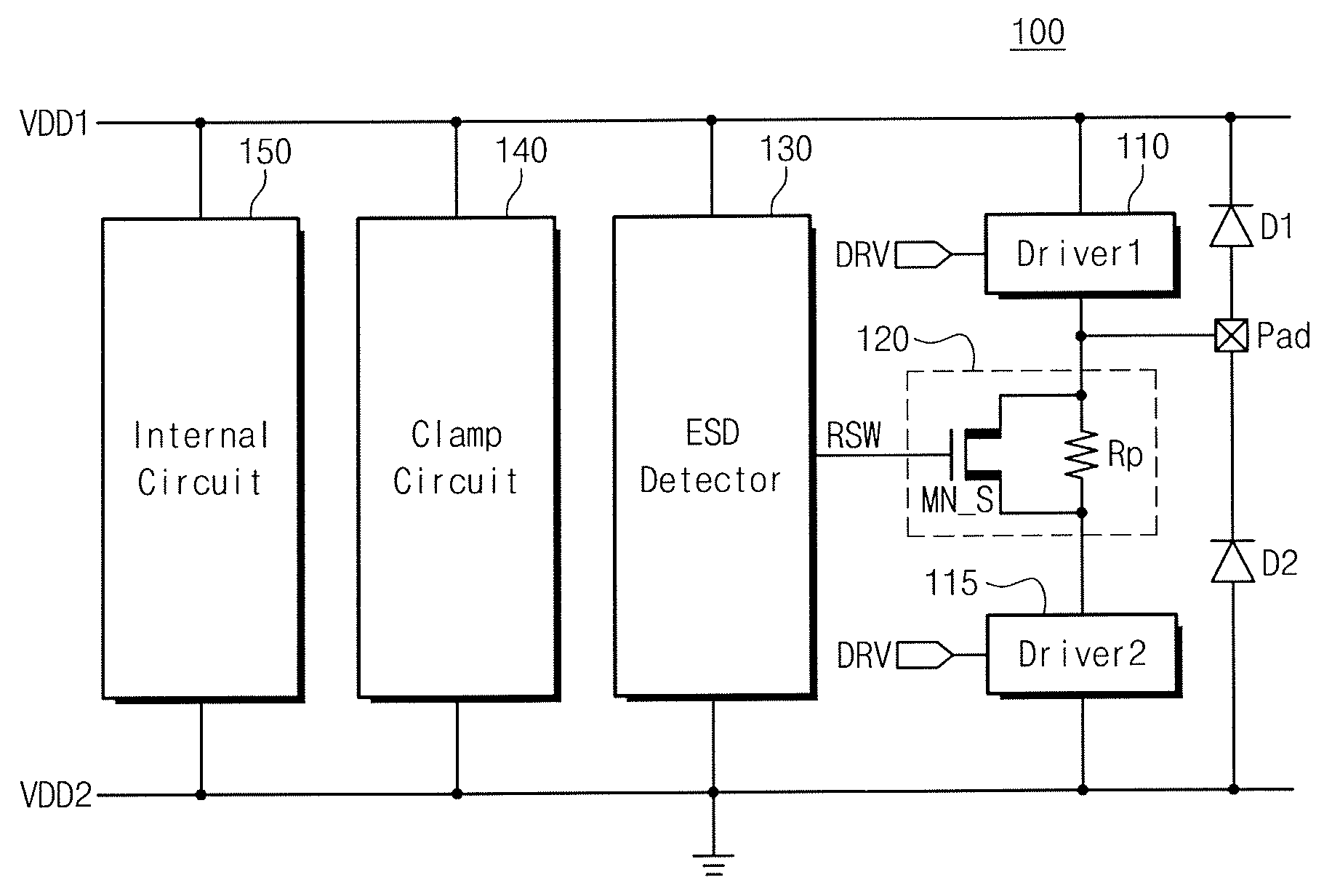

A semiconductor device includes a first driver configured to pull up a voltage level of a pad to a first power voltage in response to a driving signal, a second driver configured to pull down the voltage level of the pad to a second power voltage in response to the driving signal, a switch protection resistor configured to change an electrical resistance between the pad and the second driver in response to a switch control signal, and an ESD detector configured to detect a voltage level of the first or second power voltage and generate the switch control signal.
