Semiconductor device structure and method for forming the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Jul 14, 2016
filing date -
Jul 14, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

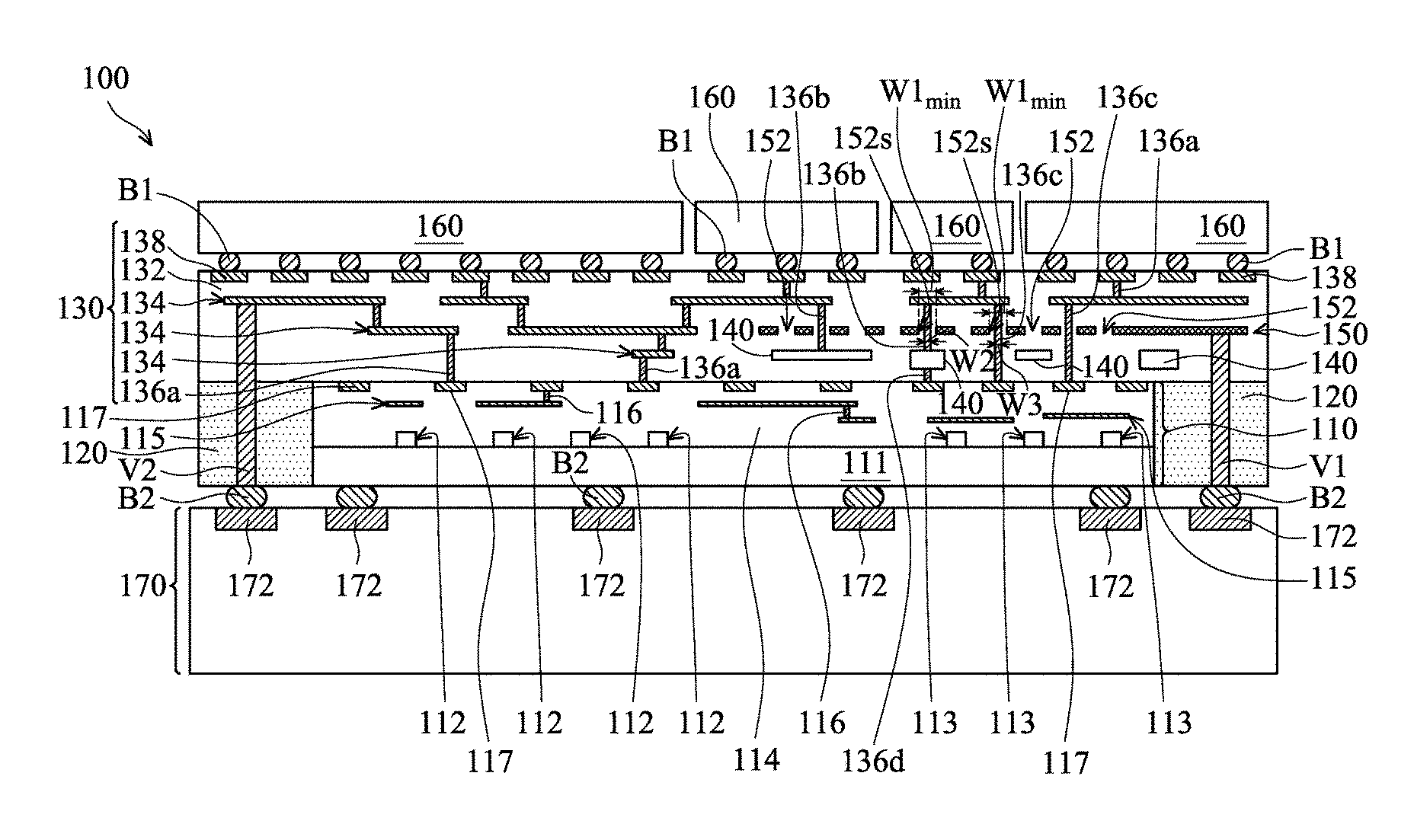

A semiconductor device structure is provided. The semiconductor device structure includes a first device. The semiconductor device structure includes a conductive element over the first device. The semiconductor device structure includes a first conductive shielding layer between the first device and the conductive element. The first conductive shielding layer has openings, and a maximum width of the opening is less than a wavelength of an energy generated by the first device.
