Power conversion device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Mar 10, 2016
filing date -
Mar 31, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

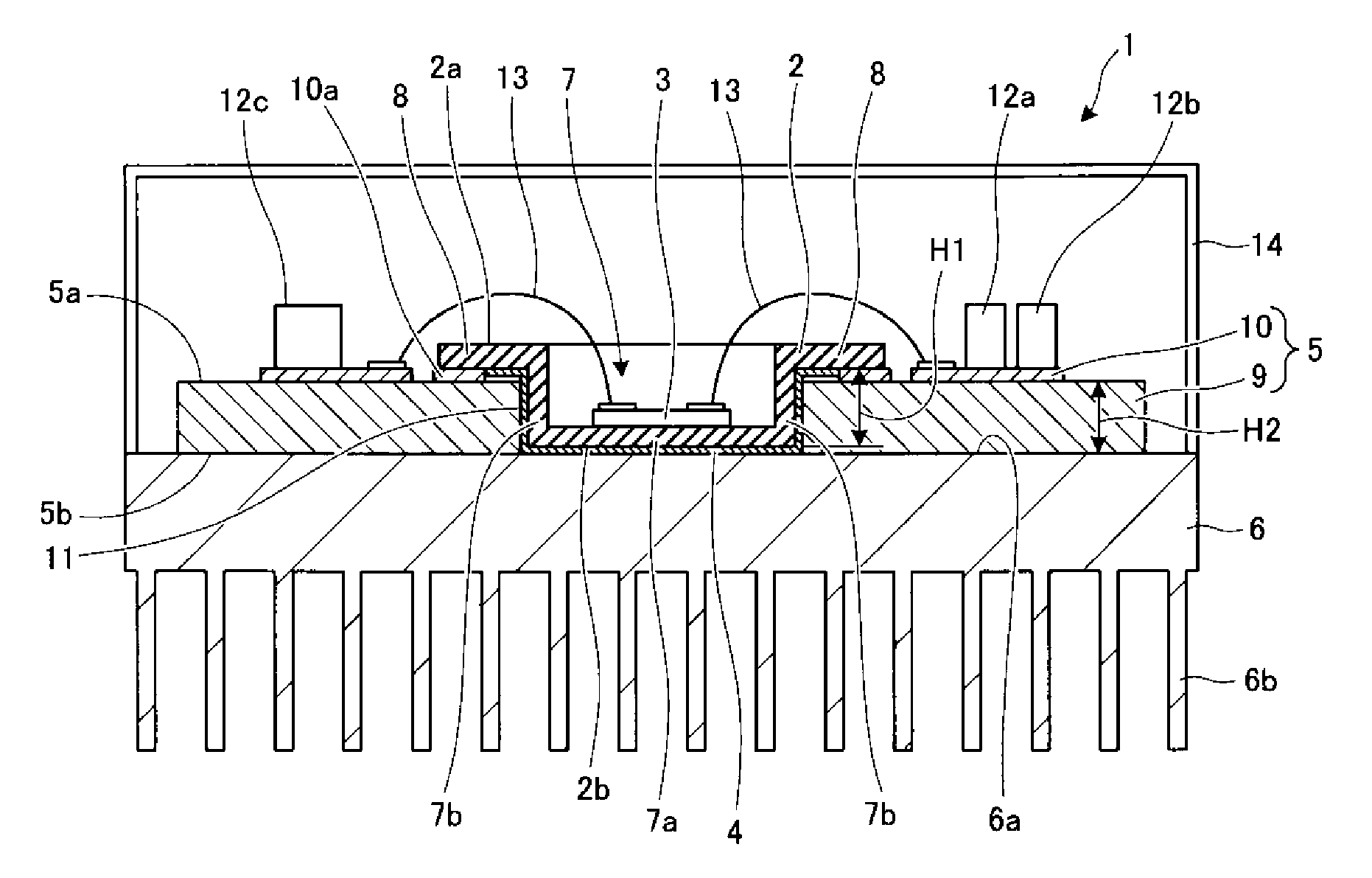

A power conversion device includes a heat releasing heatsink, a printed circuit board provided on the heatsink and having a through hole and wires, a metal case having a depressed portion fitted in the through hole and mounted on a top of the heatsink, and a heat releasable insulating layer made of a ceramic material and disposed between a bottom of the depressed portion and a top portion of the heat sink. A power semiconductor element is mounted in the depressed portion and electrically connected to the wires of the printed circuit board.
