Waterproof sealing arrangement for a side key on a terminal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Aug 27, 2014
filing date -
Jun 17, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

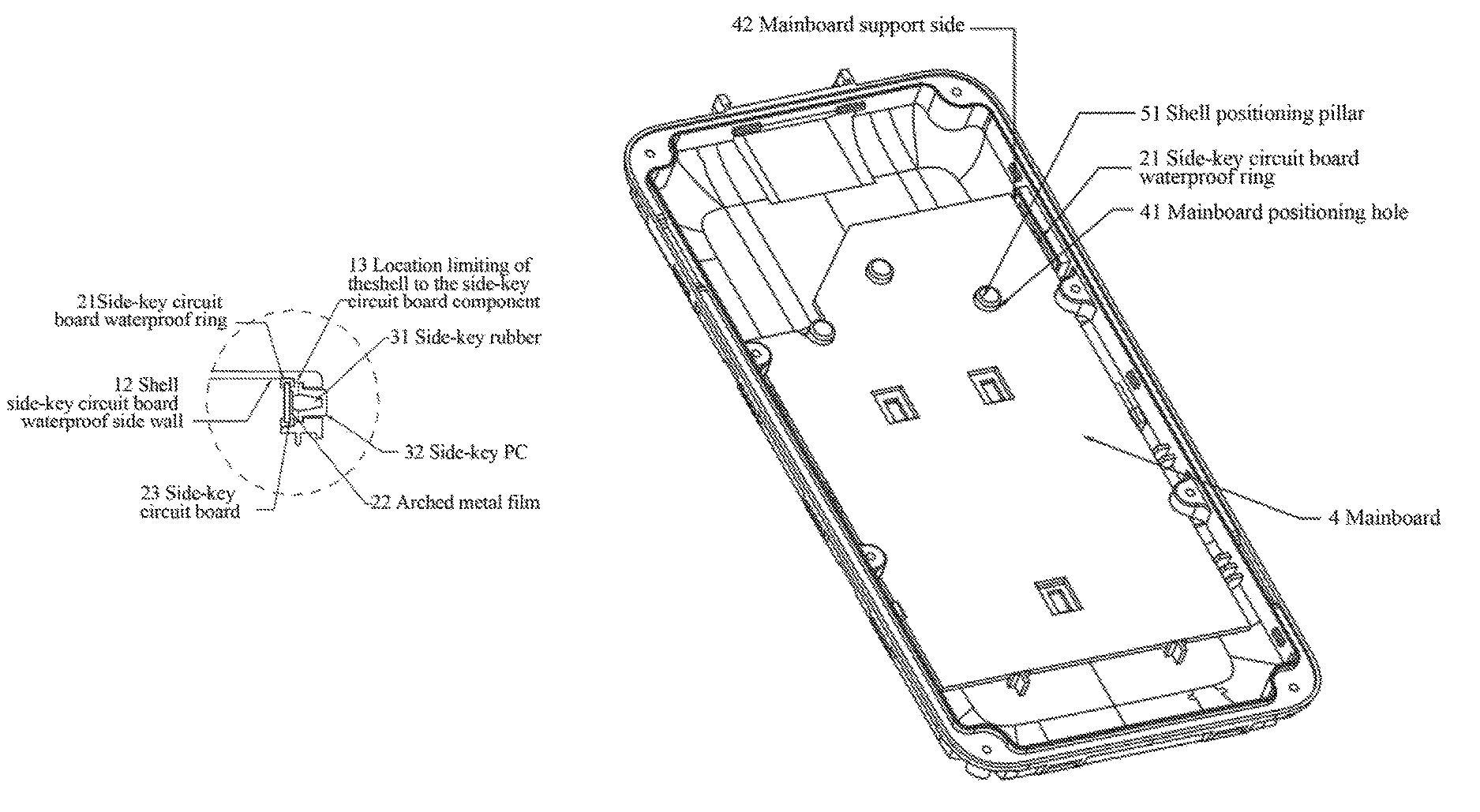

A waterproof apparatus for a terminal side key and a terminal are disclosed. The apparatus includes: a terminal shell (1) with a sidewall hole that is filled with a terminal side key (3), and a terminal side-key circuit board component (2) connected to a terminal mainboard (4), herein, the terminal side-key circuit board component (2) includes: a side-key circuit board (23), an arched metal film (22) fixedly connected to the side-key circuit board, and a circuit board waterproof ring (21) used for wrapping the side-key circuit board (23) and the arched metal film (22) as a whole, herein, the circuit board waterproof ring (21) wrapping the side-key circuit board (23) and the arched metal film (22) as a whole is combined with a sidewall of the terminal shell (1) in an interference-fitted manner.
