Winding component
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Jan 17, 2017
filing date -
Jan 26, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

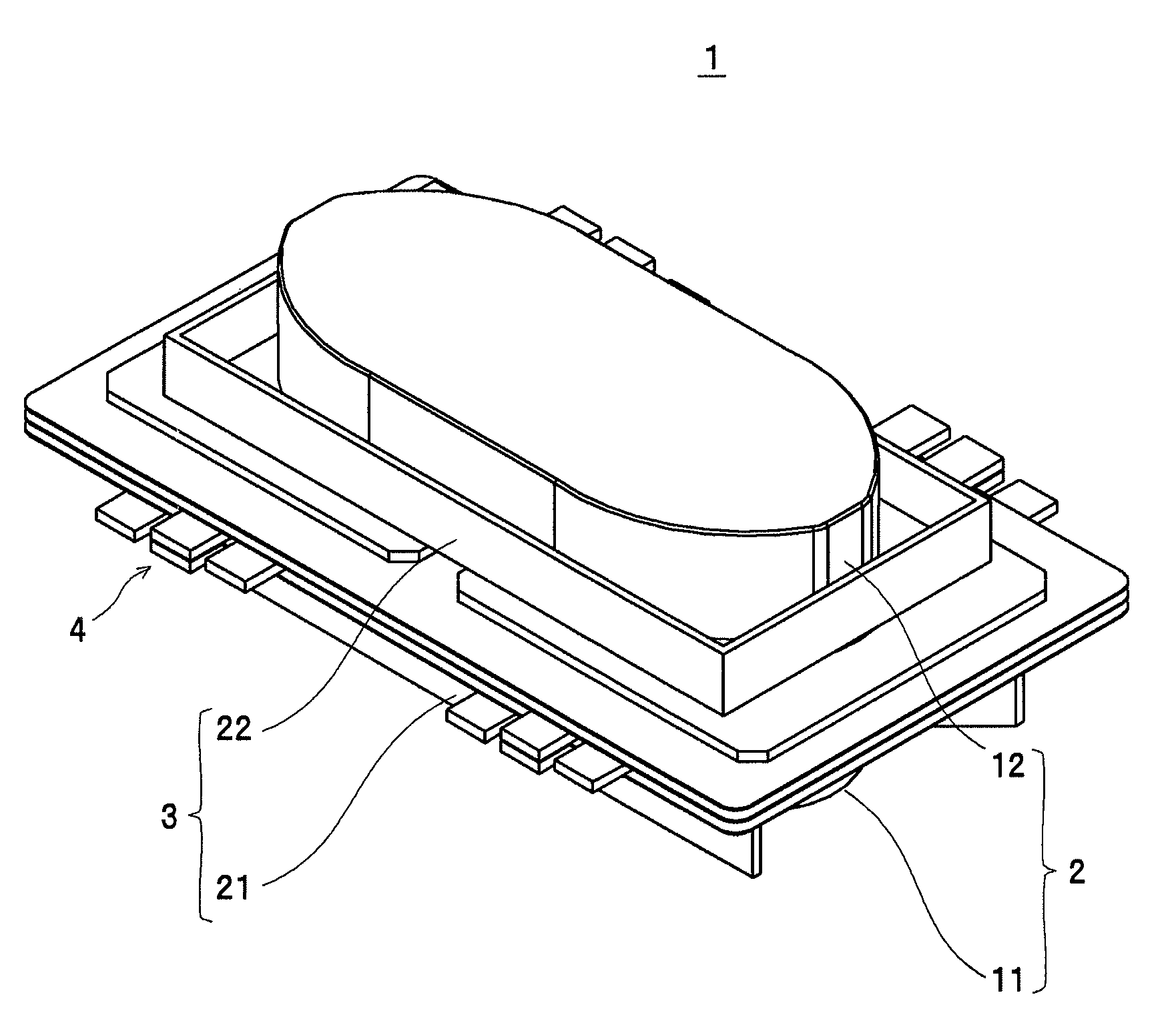

A winding component includes a core; a frame disposed near the core; and a winding. The frame includes two frame members, which are joined and have openings for inserting the core and guards that face each other. A barrel, which is disposed on an edge of an opening and has the core inserted thereinto, is formed on one frame member, which also includes a separation restricting portion that restricts separation of the frame members and includes: a plate that protrudes from the barrel toward the other frame member and elastically deforms relative to a center of the opening; and a hook which is formed on the plate, protrudes away from the center, and engages the other frame member. When the core is inside the barrel, the plate and the core remain adjacent or in contact, and elastic deformation of the plate toward the center is restricted.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H01F Class
- 2444 Applications Filed
- 1810 Patents Issued To-Date
- 74.06 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01F Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
