Coil electronic component
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Apr 1, 2016
filing date -
Apr 16, 2015
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

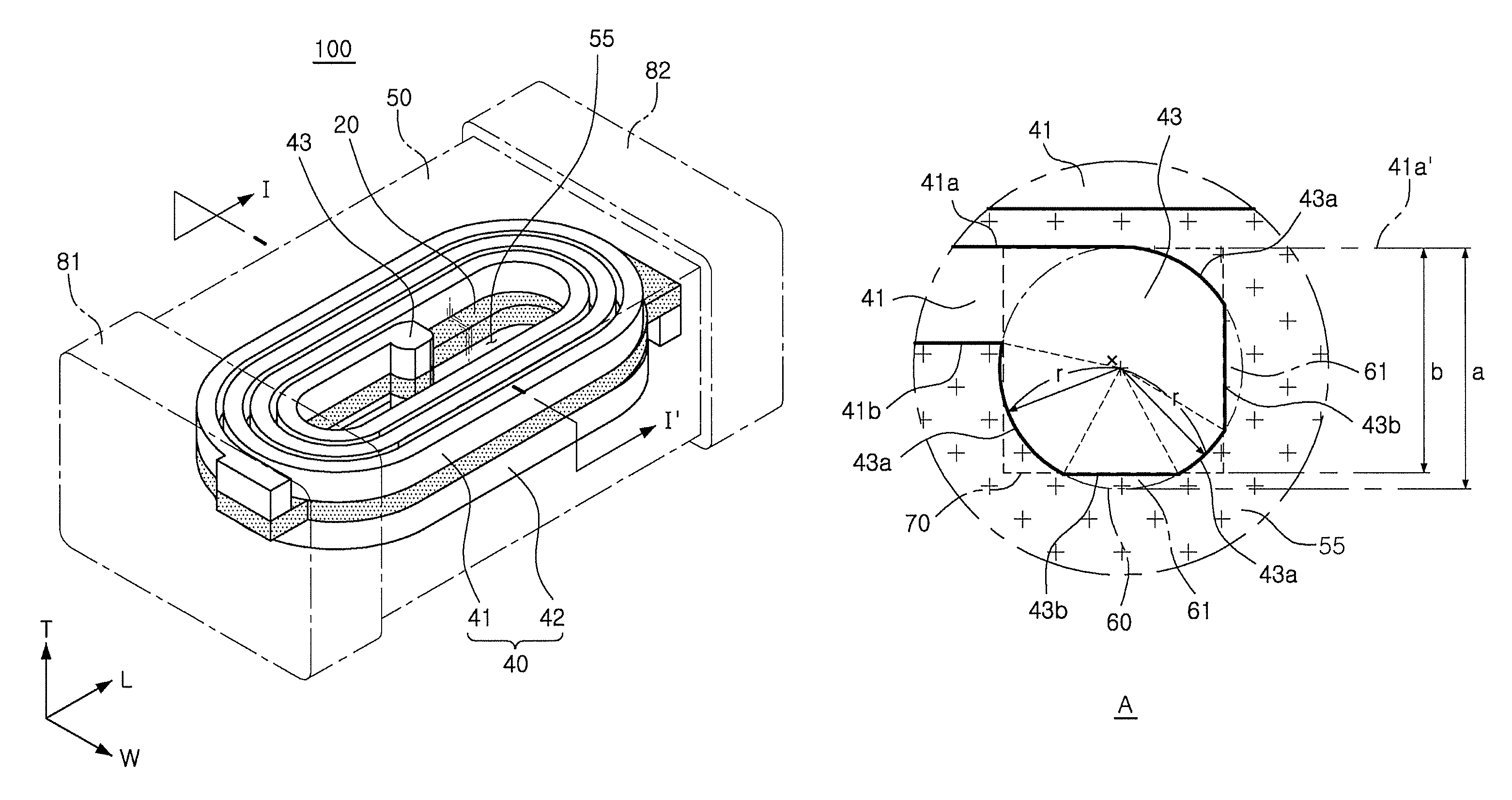

A coil electronic component includes a first coil disposed on a first surface of an insulating substrate; a second coil disposed on a second surface of the insulating substrate opposing the first surface; a via connecting the first and second coils through the insulating substrate; a first via pad formed as one end of the first coil extending and disposed on the first surface of the insulating substrate to cover the via; and a second via pad formed as one end of the second coil extending and disposed on the second surface of the insulating substrate to cover the via. Upper surfaces of the first and second via pads have rounded corners.
