Gamma curve adjusting method and device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
May 20, 2016
filing date -
Aug 14, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

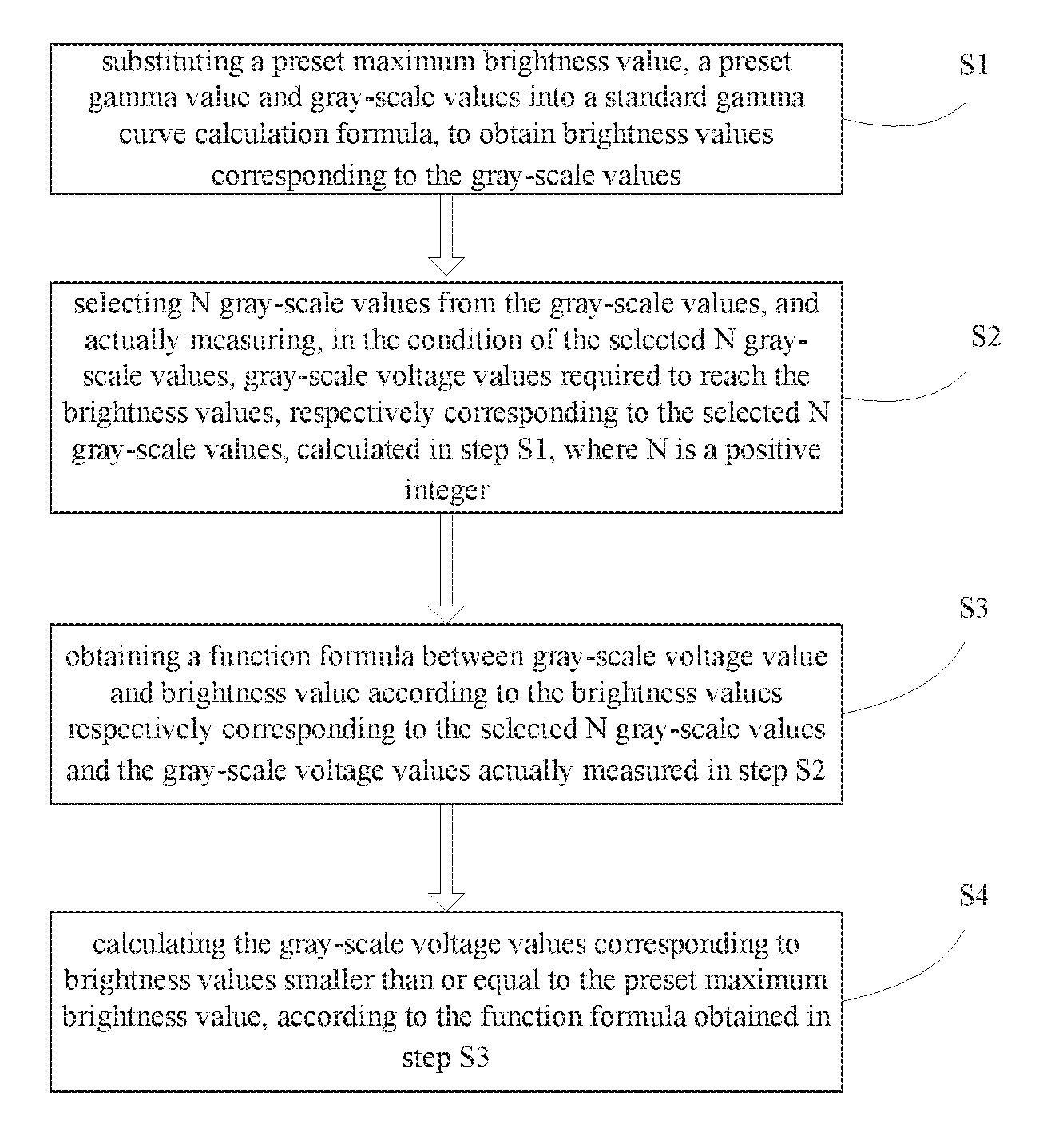

The present disclosure provides gamma curve adjusting method and device, and the method includes: substituting a preset maximum brightness value, a preset gamma value and gray-scale values into a standard gamma curve calculation formula, to obtain brightness values corresponding to the gray-scale values; selecting N gray-scale values from the gray-scale values, and actually measuring, in the condition of the selected N gray-scale values, gray-scale voltage values required to reach brightness values, respectively corresponding to the selected N gray-scale values, calculated according to the standard gamma curve calculation formula, where N is a positive integer; obtaining a function formula between gray-scale voltage value and brightness value according to brightness values respectively corresponding to the selected N gray-scale values and the actually measured gray-scale voltage values; and calculating gray-scale voltage values corresponding to brightness values smaller than or equal to the preset maximum brightness value, according to the obtained function formula.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G09G Class
- 5285 Applications Filed
- 4159 Patents Issued To-Date
- 78.70 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G09G Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
