Method for replicating data in a backup storage system using a cost function
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2018
Issued Date -
N/A
app pub date -
Aug 9, 2016
filing date -
Jun 8, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance

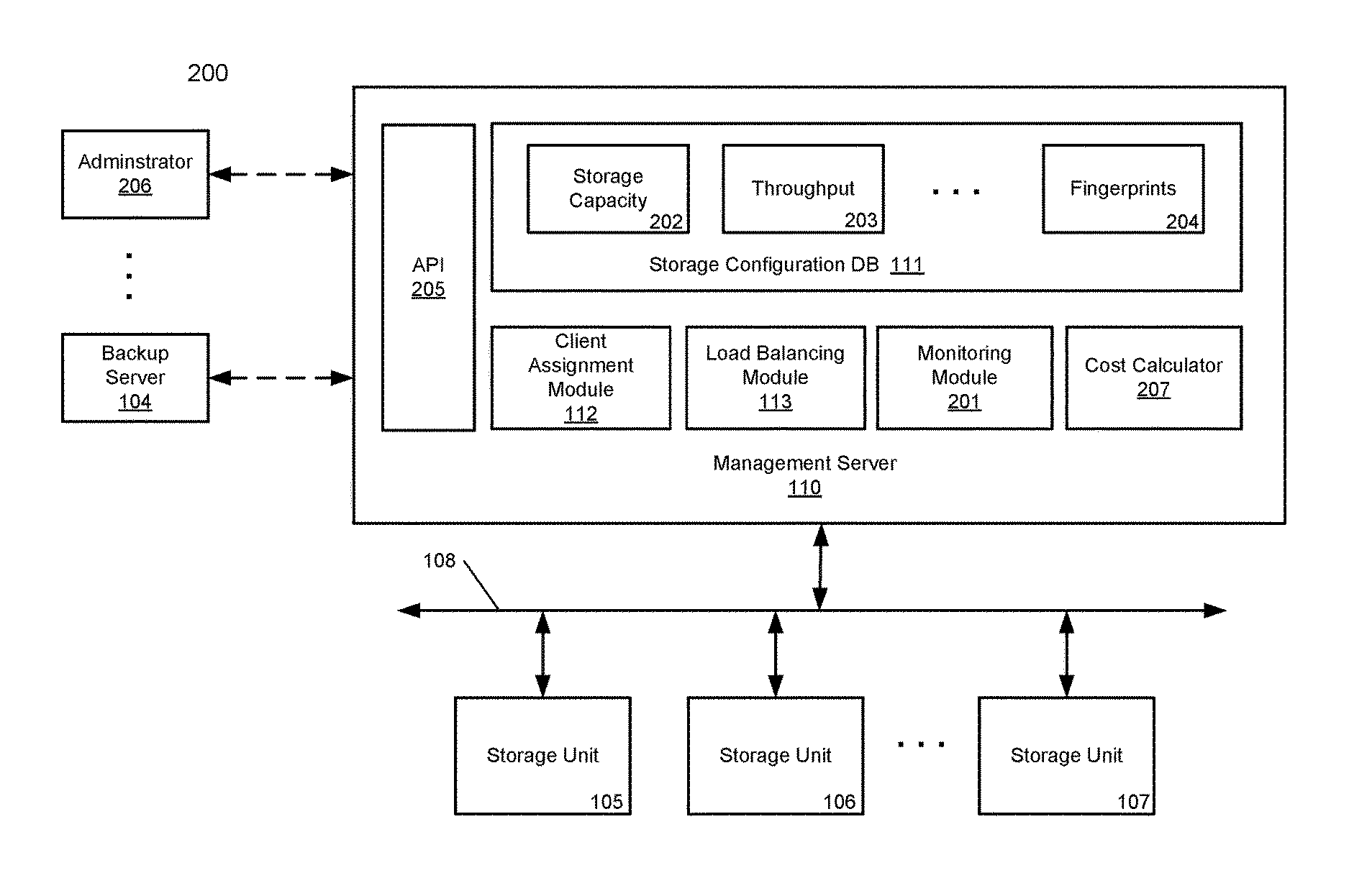

Abstract
An operating state of each of a plurality of storage units of a storage system is periodically monitored, including a storage capacity, a throughput, and overlap of clients associated with the storage units. In response to a request to redistribute data from a first of the storage units to another storage unit, a cost factor for each of remaining storage units to relocate the data of the first storage unit to each of the remaining storage units is determined. A cost factor of each of the remaining storage units is determined based on at least one of the storage capacity, the throughput, or the overlap of clients of the storage unit. A second of the storage units having a lowest cost factor amongst the remaining storage units is selected. At least a portion of the data of the first storage unit is migrated to the second storage unit.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G06F Class
- 60255 Applications Filed
- 46180 Patents Issued To-Date
- 76.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G06F Class
- 20.77 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 23, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 23, 2029 |
